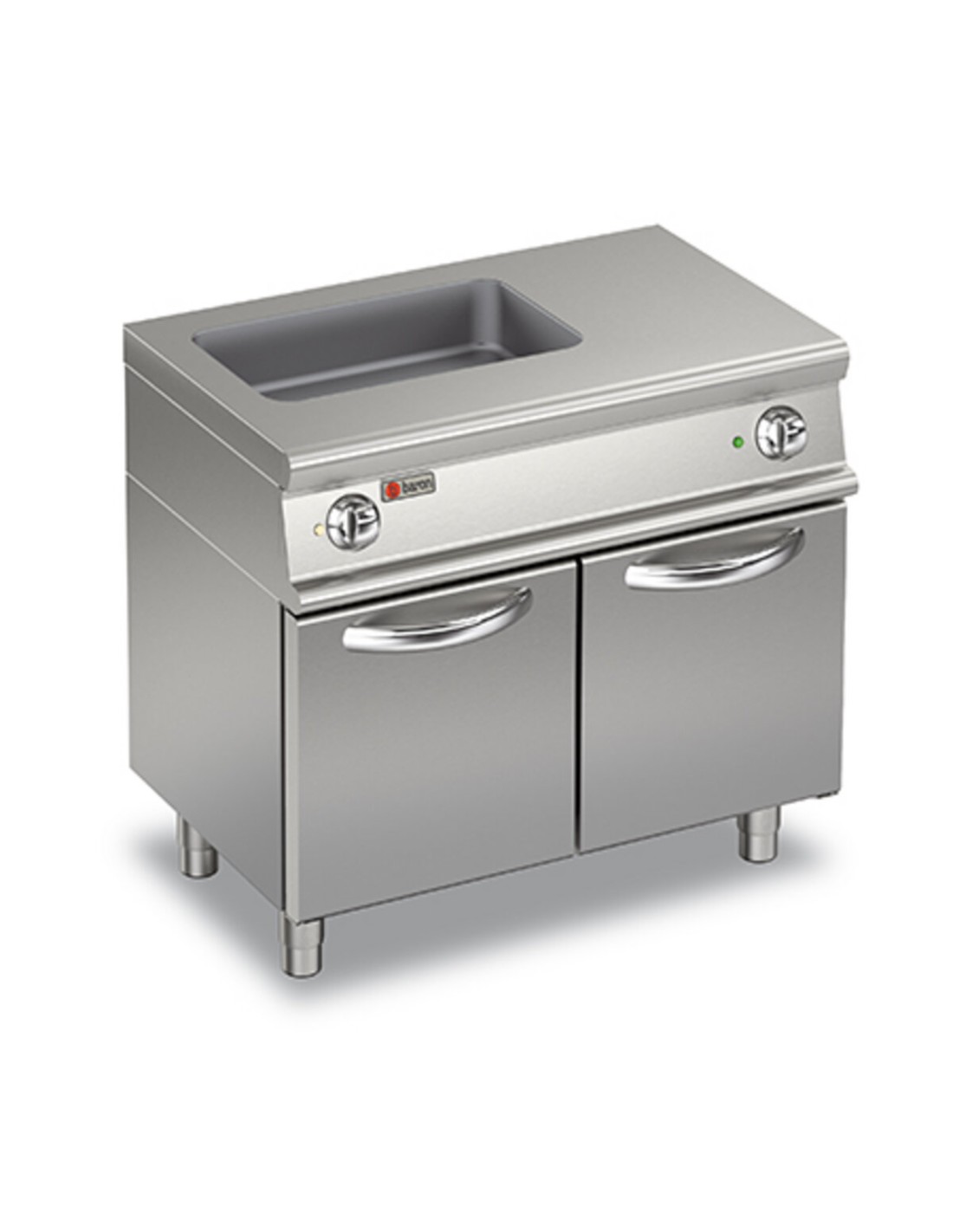

MULTIFUNCTIONAL BRATT PAN - ON CABINET WITH DOORS
CR0997199_it.pdfDWG-3D
Pictures
CR0997199.jpgStainless steel outer coatings and Scotch Brite finish.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.
All-steel fixed tank.
Resistances placed under the bottom.
Adjustable temperature from 50 to 300°c.
N550BRF/E900
CR0997199 - Standard Standard
Data sheet
- Model
- N550BRF/E900
- CODE
- CR0997199
- Commercial code
- N550BRF/E900
- Material type
- ZPF
- Definition
- N550BRF/E900 BRASIERA FISSA M90 A/G C/P
- Height
- 1160mm
- Width
- 480mm
- Depth
- 1250mm
- Volume
- 0.696m3
- Gross volume
- 0760
- Net weight
- 86.7Kg
- Gross weight
- 102Kg
- Production site
- BELLUNO
- Product variant
- INDUZIONE
- Certified model
- N550BRF/E900
- Product type
- STANDARD
- Company
- 0232
- Packaging width
- 940
- Packaging height
- 1250
- Packaging length
- 650
- Alimentazione
- ELETTRICA
- Electrical power
- 4,500Kw
220-240V 1N - Frequency
- 50/60 HzHz
- IP grade
- IPX4
- Capacità litri
- 17L
- Voltage
- 230
- N. Fires/Plates
- DUE FUOCHI
Specific References
- mpn
- N550BRF/E900
