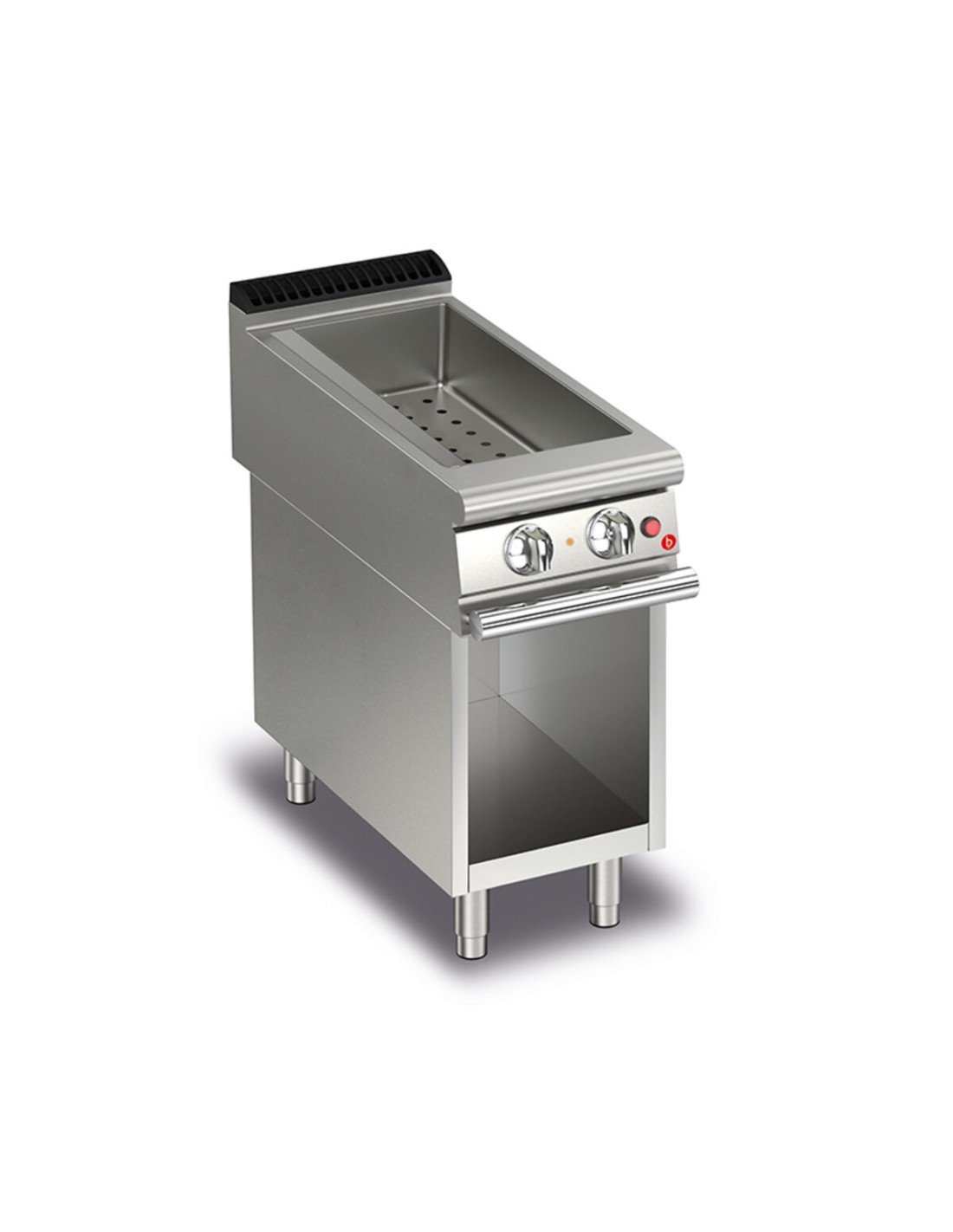

ELECTRIC BAIN-MARIE ON OPEN COMPARTMENT

Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , BAIN MARIES
Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.Gas version Stabilized flame burners regulated by thermostatic valves. Piezoelectric ignition. Electric version Heated by armored heating elements placed outside the tank. Control thermostat. Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TRAY Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

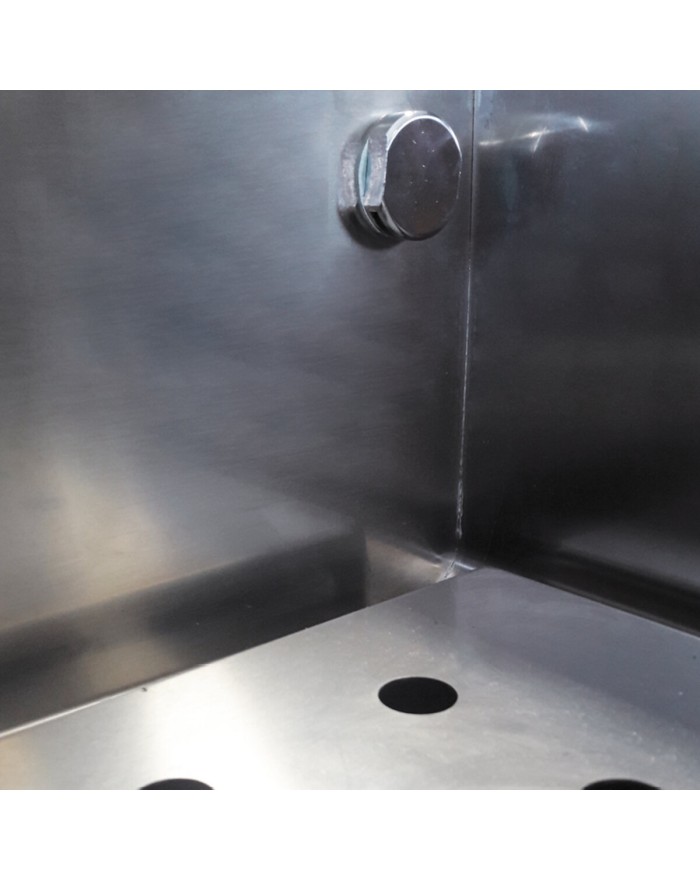

Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank.



Integrated water dispenser in tank

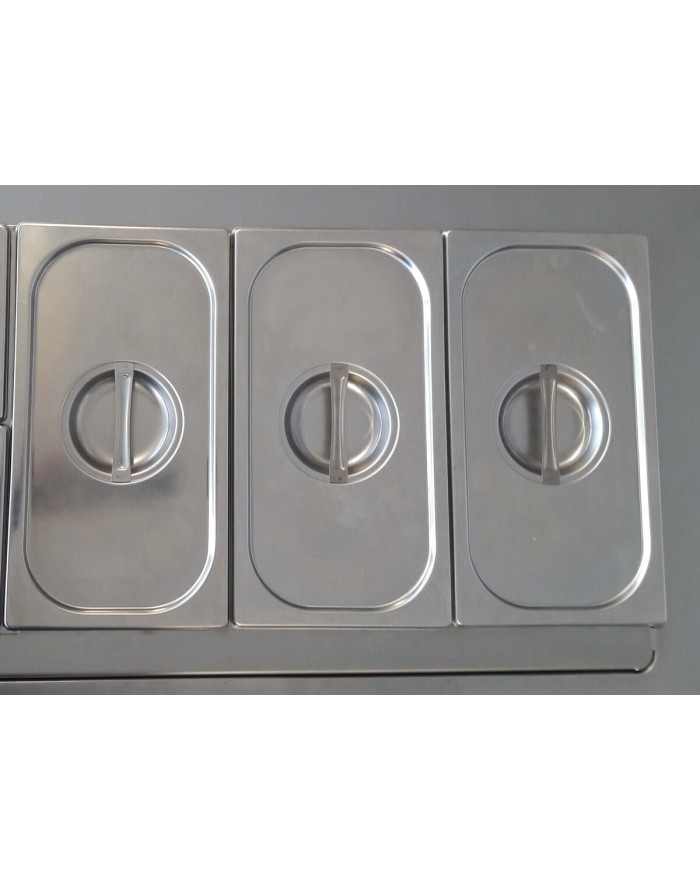

Different GN basin combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TANK

Q90BMV/E410
CR1017919 - Standard Standard

Data sheet

Net weight
41Kg
IP grade
IPX5
Gross weight
49Kg
Capacita GN
GN1113-24
Certified model
Q90BMV/E410
Power supply 2
220-240V 2
CE-certified
-
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Packaging width
1020
Model
Q90BMV/E410
Packaging height
1150
CODE
CR1017919
Width
400mm
Material type
ZPF
Packaging length
460
Definition
Q90BMV/E410 BAGNOMARIA EL. M40 A/G
Alimentazione
ELETTRICA
Depth
900mm
Electrical power
1,800Kw
220-240V 1N
Height
870mm
Frequency
50-60 HzHz
Volume
0.313m3
Capacity
1 x Gn 1/3
+
1 x Gn 1/1
Gross volume
0540

Specific References

mpn
Q90BMV/E410
