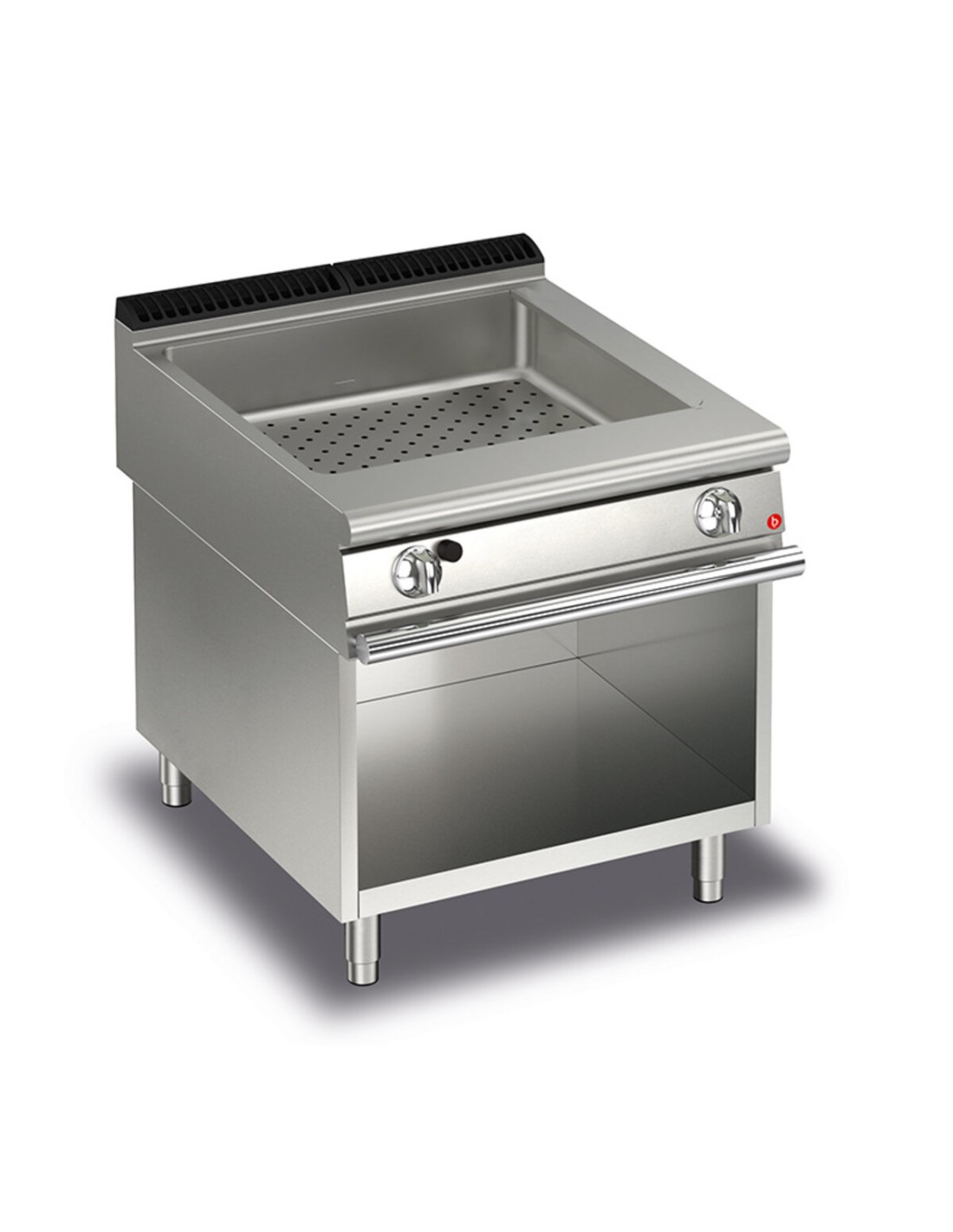

GAS BAIN-MARIE ON OPEN COMPARTMENT

Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.
Tipo Alimentazione
Promo
Print
Home , COOKING , QUEEN 9 , BAIN MARIES
Bain-marie: GN tanks with overflow, thermal regulation from 30°C to 90°C, available in gas and electric options. Water jet protection (IPX5), equipment certified for the Low Voltage Directive 2014/35/EU according to the international CB scheme, with automatic or manual water filling for efficiency and safety.Gas version Stabilized flame burners regulated by thermostatic valves. Piezoelectric ignition. Electric version Heated by armored heating elements placed outside the tank. Control thermostat. Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TRAY Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

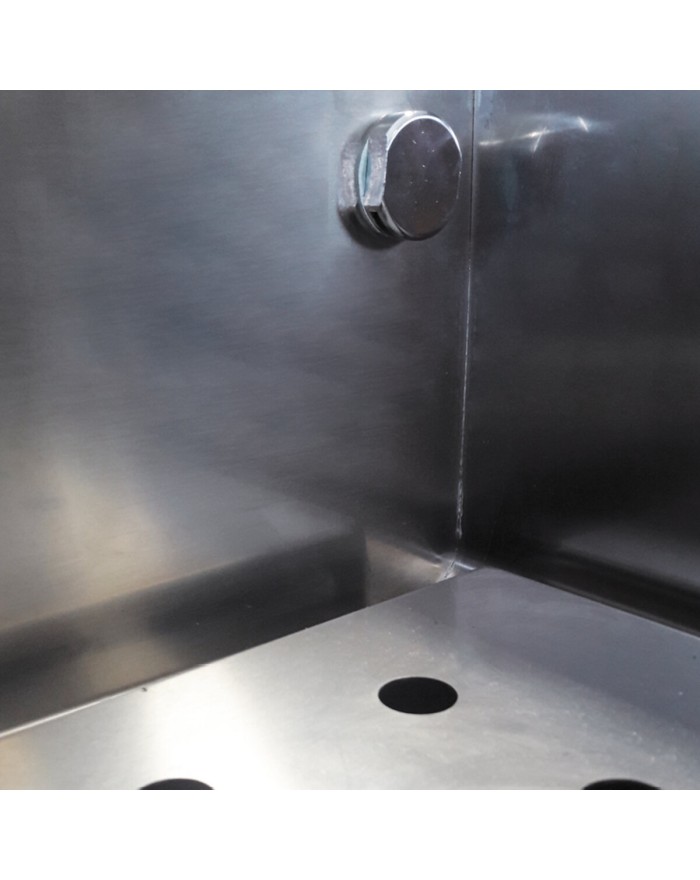

Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank.



Integrated water dispenser in tank

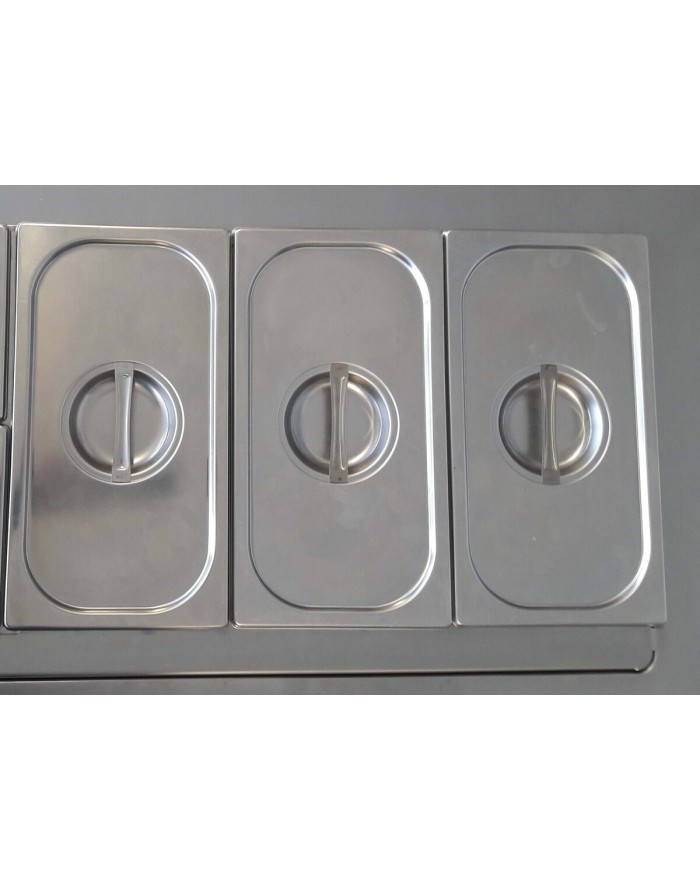

Different GN basin combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TANK

Q90BMV/G800
CR1017889 - Standard Standard

Data sheet

Volume
0.626m3
Packaging length
440
Gas power Kw
6,00Kw
Alimentazione
GAS
Gas power (G25.3/25 mbar)
5,50Kw
Capacity
2 x Gn 1/3
+
2 x Gn 1/1
Gas power Kcal
4730Kcal
III1a2H3B-P
DK
Gross volume
0500
Capacita GN
GN1113-25
Net weight
100Kg
Gross weight
111Kg
Chimney type
A1
II2H3+
ES/GB/GR/IE/IT/PT/SK
Certified model
Q90BMV/G800
Model
Q90BMV/G800
CE-certified
CE-0085BS0153
CODE
CR1017889
Product type
STANDARD
Commercial code
Q90BMV/G800
Company
0232
Material type
ZPF
Commercial Line
QUEEN
Definition
Q90BMV/G800 BAGNOMARIA GAS M80 A/G
Packaging width
980
Depth
900mm
Packaging height
1150
Height
870mm
Width
800mm

Specific References

mpn
Q90BMV/G800
