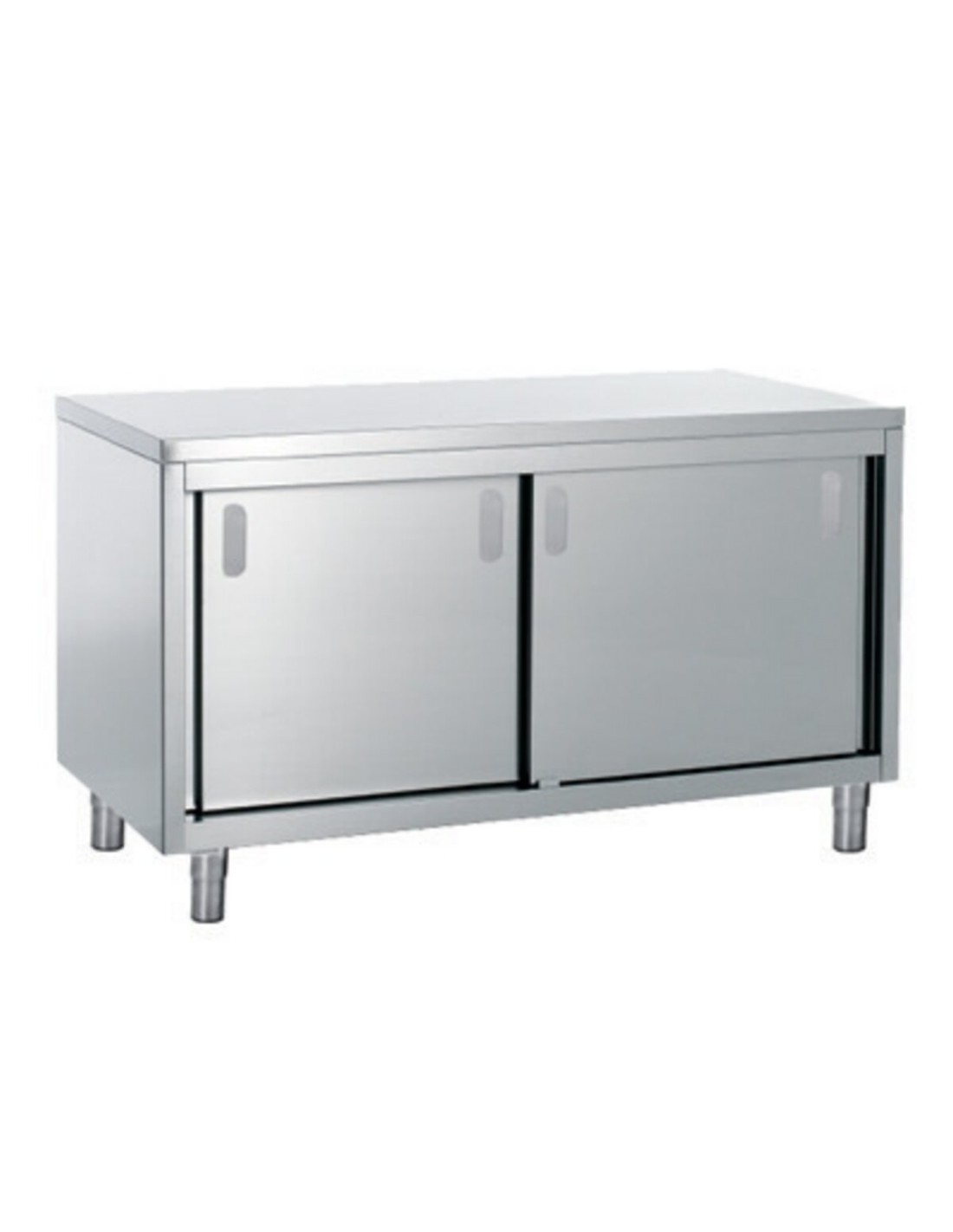

CUPBOARD TABLES-2 DOORS AND 1 LOWER SHELF
Data Sheet
DWG-3D
Pictures
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm
18/10 AISI 304 STAINLESS STEEL SHELL
Recessed with respect to the top by 20 mm at the front, flush at the rear
18/10 AISI 304 STAINLESS STEEL SHELF
Longitudinal reinforcement at center of shelf adjustable in height on racks
18/10 AISI 304 STAINLESS STEEL DOORS
Front with recessed handle with inside counter door
SLIDES
Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides
SHUTTER
Closure with magnets and rotary opening
FEET
Round foot made of 18/10 AISI 304 stainless steel, with leveler
Scotch-Brite stainless steel execution. Worktop. Water-repellent and sound-absorbing
sound-absorbing.
Soundproof sliding doors and height-adjustable intermediate shelf. Adjustable round feet.
Can be equipped with castors.
NAP621PS
BNN54060210
Data sheet
- Model
- NAP621PS
- Code
- BNN54060210
- Material type
- ZPF
- Definition
- TAVOLO ARMADIO R10 C/PORTE SAP621PS
- Width
- 2100mm
- Height
- 900mm
- Depth
- 600mm
- Volume
- 1.7m3
- Gross volume
- 1700
- Net weight
- 84Kg
- Gross weight
- 114Kg
- Certified model
- SAP621PS
- CE-certified
- -
- Company
- 0230
- Packaging width
- 740
- Packaging height
- 1040
- Packaging length
- 2140
- Alimentazione
- NESSUNA
