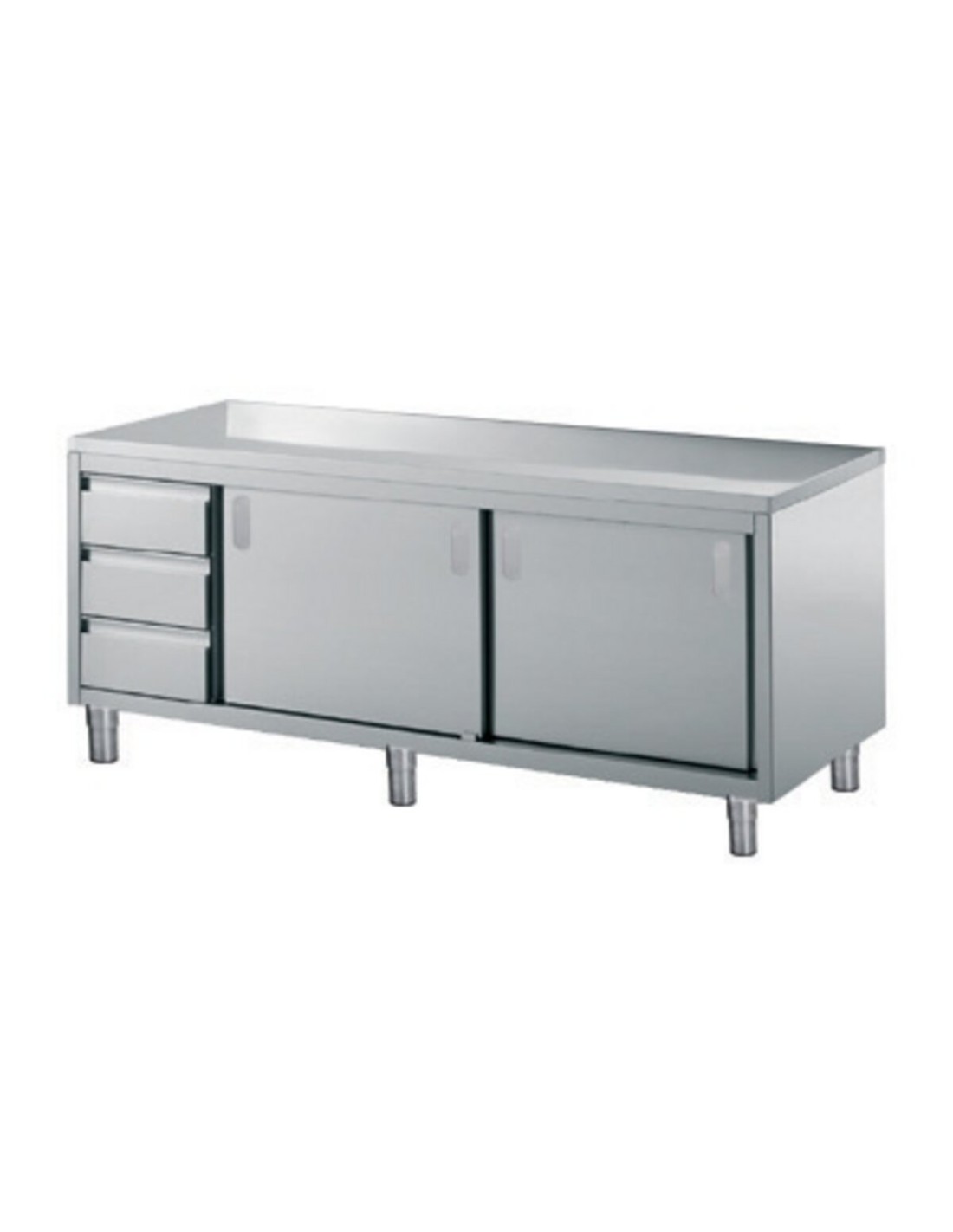

COMBINATION CUPBOARD TABLE-2 SLIDING DOORS AND 3 DRAWERS

Scotch-Brite stainless steel execution. Worktop with hand-safe folds. Water-repellent and sound-absorbing undercounter. Soundproof sliding doors, intermediate shelf and drawer units with rounded internal edges Adjustable feet, can be fitted with castors.
Print
STAINLESS STEEL WORKTOP 18/10 AISI 304 SB Height 40 mm, Reinforced with laminated wood panel, Backsplash 100x15 mm 18/10 AISI 304 STAINLESS STEEL SHELL Recessed with respect to the top by 20 mm at the front, flush at the rear 18/10 AISI 304 STAINLESS STEEL SHELF Longitudinal reinforcement at center of shelf adjustable in height on racks 18/10 AISI 304 STAINLESS STEEL DOORS Front with recessed handle with inside counter door SLIDES Upper slide with bearings, lower slide with PVC skid on PVC double-channel guides SHUTTER Closure with magnets and rotary opening FEET Round foot made of 18/10 AISI 304 stainless steel, with leveler Scotch-Brite stainless steel execution. Worktop with hand-safe folds. Water-repellent and sound-absorbing undercounter. Soundproof sliding doors, intermediate shelf and drawer units with rounded internal edges Adjustable feet, can be fitted with castors.
NAC616PS
BNN54660161

Data sheet

Model
NAC616PS
Code
BNN54660161
Material type
ZPF
Definition
TAVOLO ARMADIO R10 CASSETTIERA SAC616PS
Width
1600mm
Height
900mm
Depth
600mm
Volume
1.073m3
Gross volume
1073
Net weight
80Kg
Gross weight
106Kg
Certified model
SAC616PS
CE-certified
-
Company
0230
Packaging width
650
Packaging height
1000
Packaging length
1650
Alimentazione
NESSUNA
Commercial code
SAC616PS
