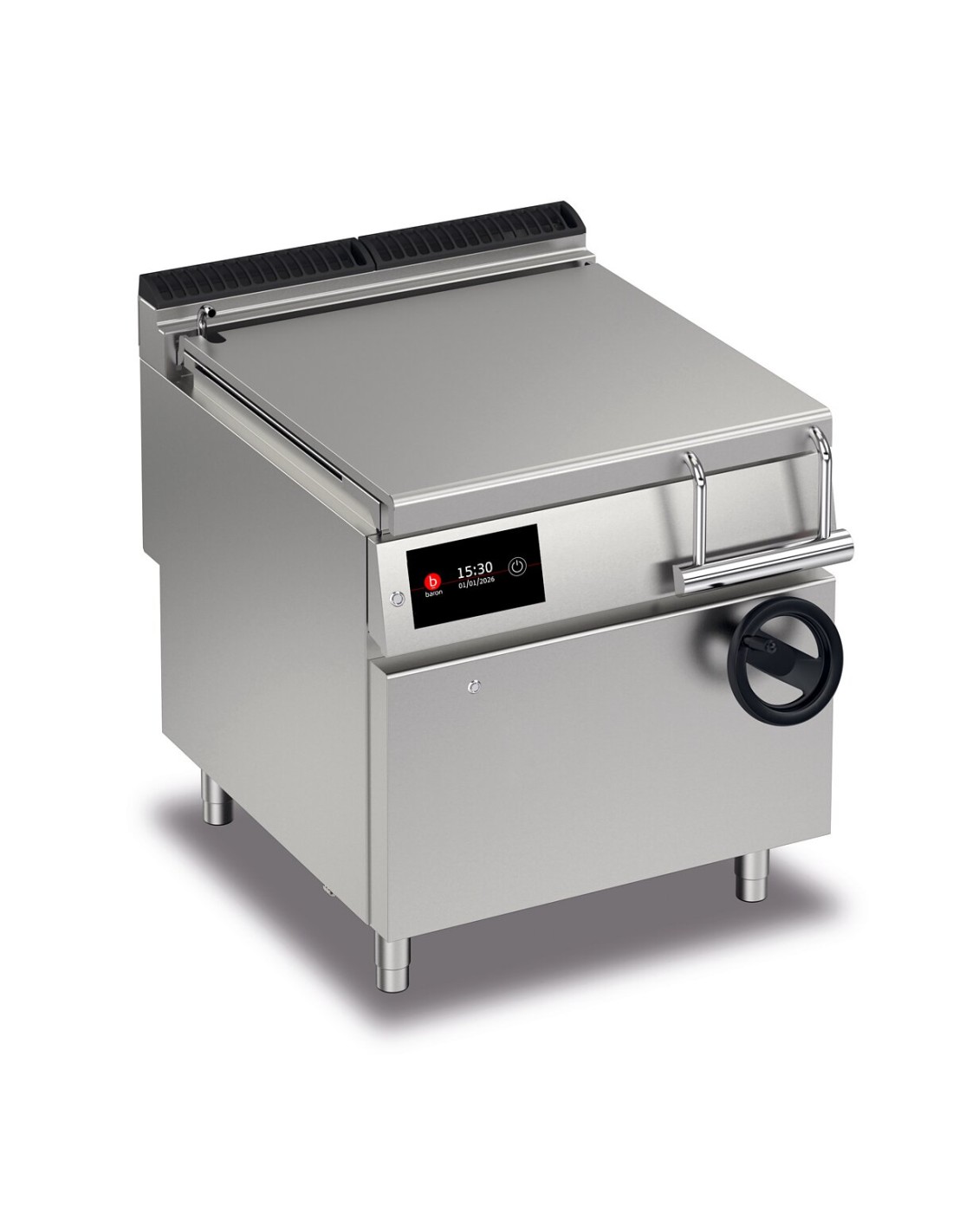

80lt MANUAL ELECTRIC TILTING BRATT PAN - DUPLEX TANK
Data Sheet
DWG-3D
Pictures
Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Available with iron, and stainless steel tanks .
Robust, double-walled, self-balancing lids made of stainless steel to reduce heat loss.
Water loading via solenoid valve.
Cooking temperature controlled by thermostat with adjustment from 100 to 280°C.
Heating via armoured incoloy heating elements.
Large-radius tilting tank. Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.







Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

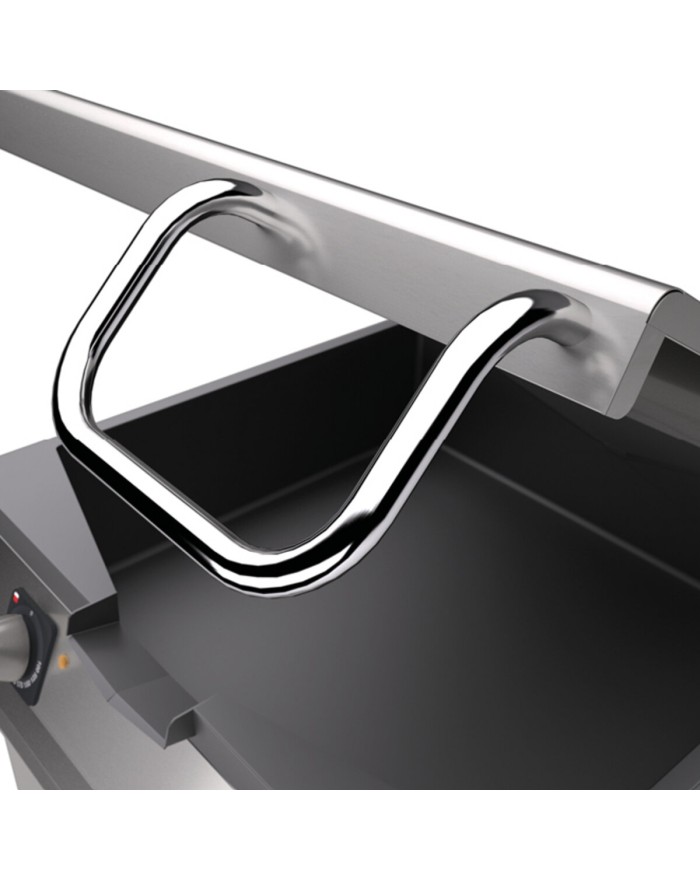

Self-balancing lids.

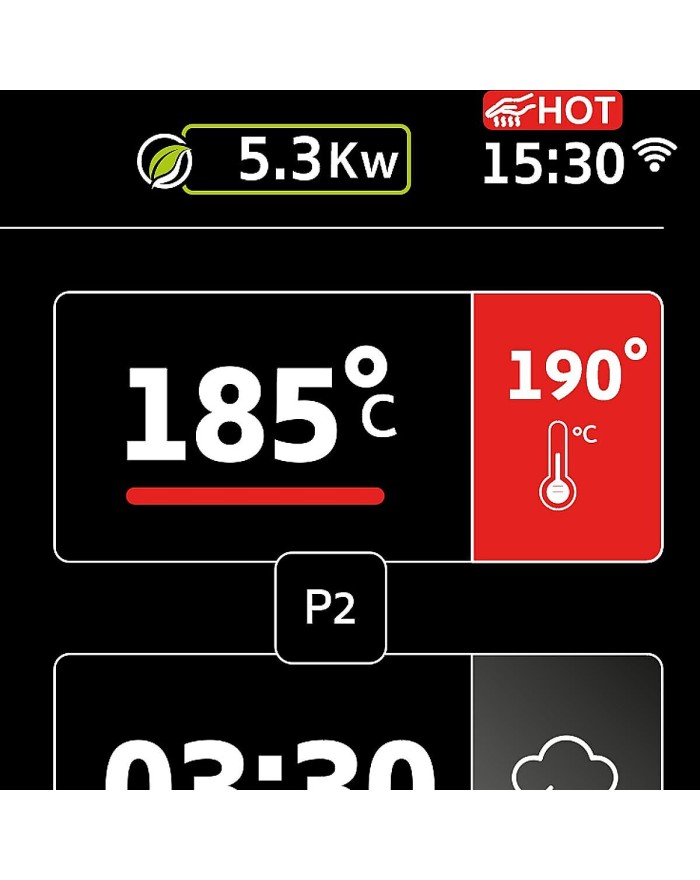

Hotplate temperature control via touch screen and adjustment with ergonomic knob

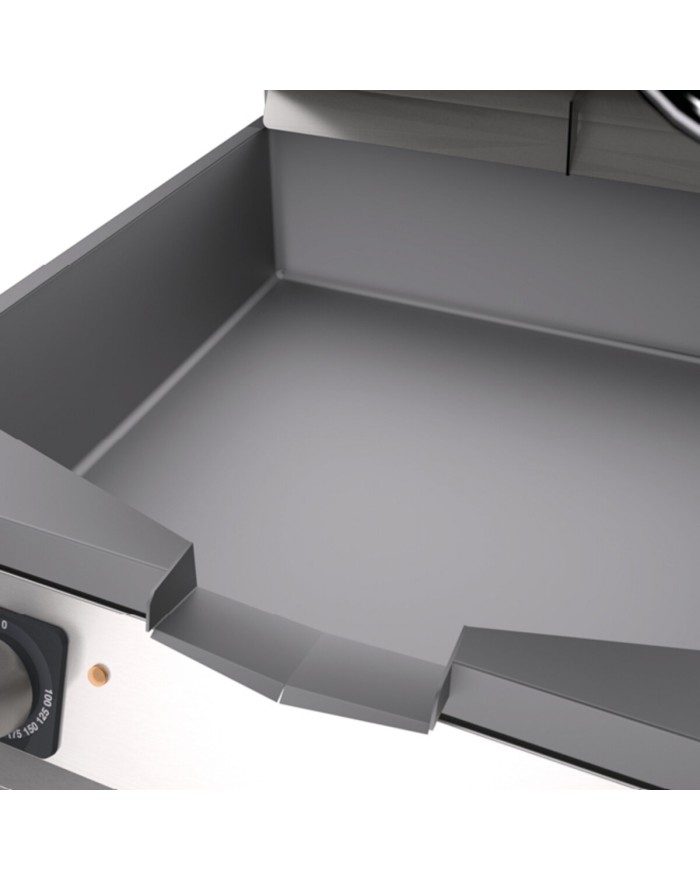

Large-radius tilting tank.

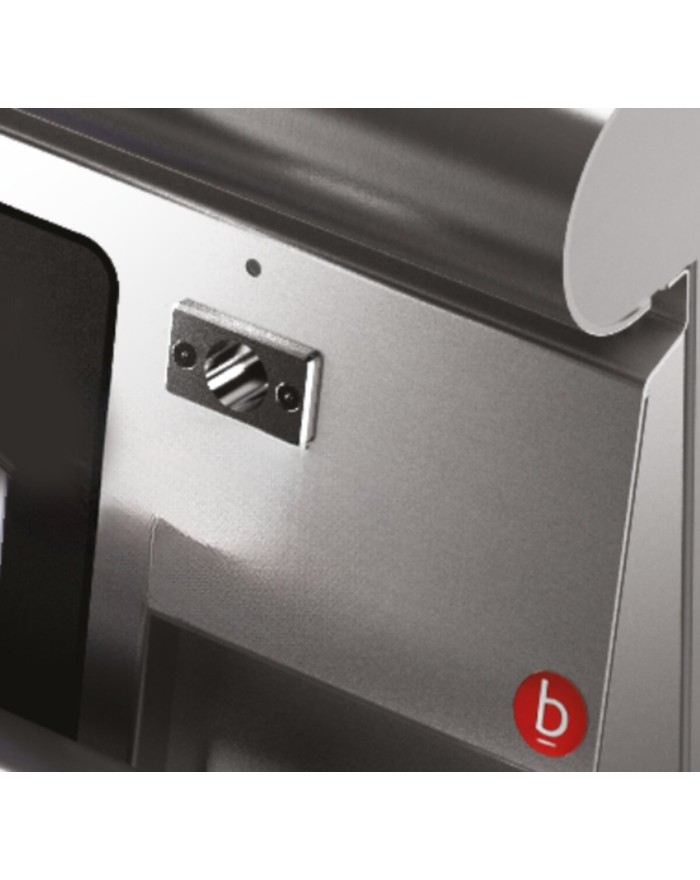

Predisposition for core probe, for even greater cooking control. Reaching the set core temperature is signalled by an acoustic signal.

Water filling via solenoid valve and fixed tap at the top.
QS90BR/E80
BN1018149 - Standard Standard
Data sheet
- Packaging width
- 1020
- Packaging height
- 1150
- Model
- QS90BR/E80
- Width
- 800mm
- CODE
- BN1018149
- Packaging length
- 850
- Material type
- ZPF
- Alimentazione
- ELETTRICA
- Definition
- QT90BR/E80-T4W BRAS. EL.M80 VASCA DUPLEX
- Electrical power
- 9,000Kw
380-415V 3N - Depth
- 900mm
- Frequency
- 50-60 HzHz
- Height
- 870mm
- Volume
- 0.626m3
- Gross volume
- 1010
- IP grade
- IPX5
- Net weight
- 134.8Kg
- Capacità litri
- 80L
- Gross weight
- 150Kg
- Materiale Piastra
- AISIDUPLEX
- Certified model
- Q90BR/E80
- CE-certified
- -
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
Specific References
- mpn
- QS90BR/E80
