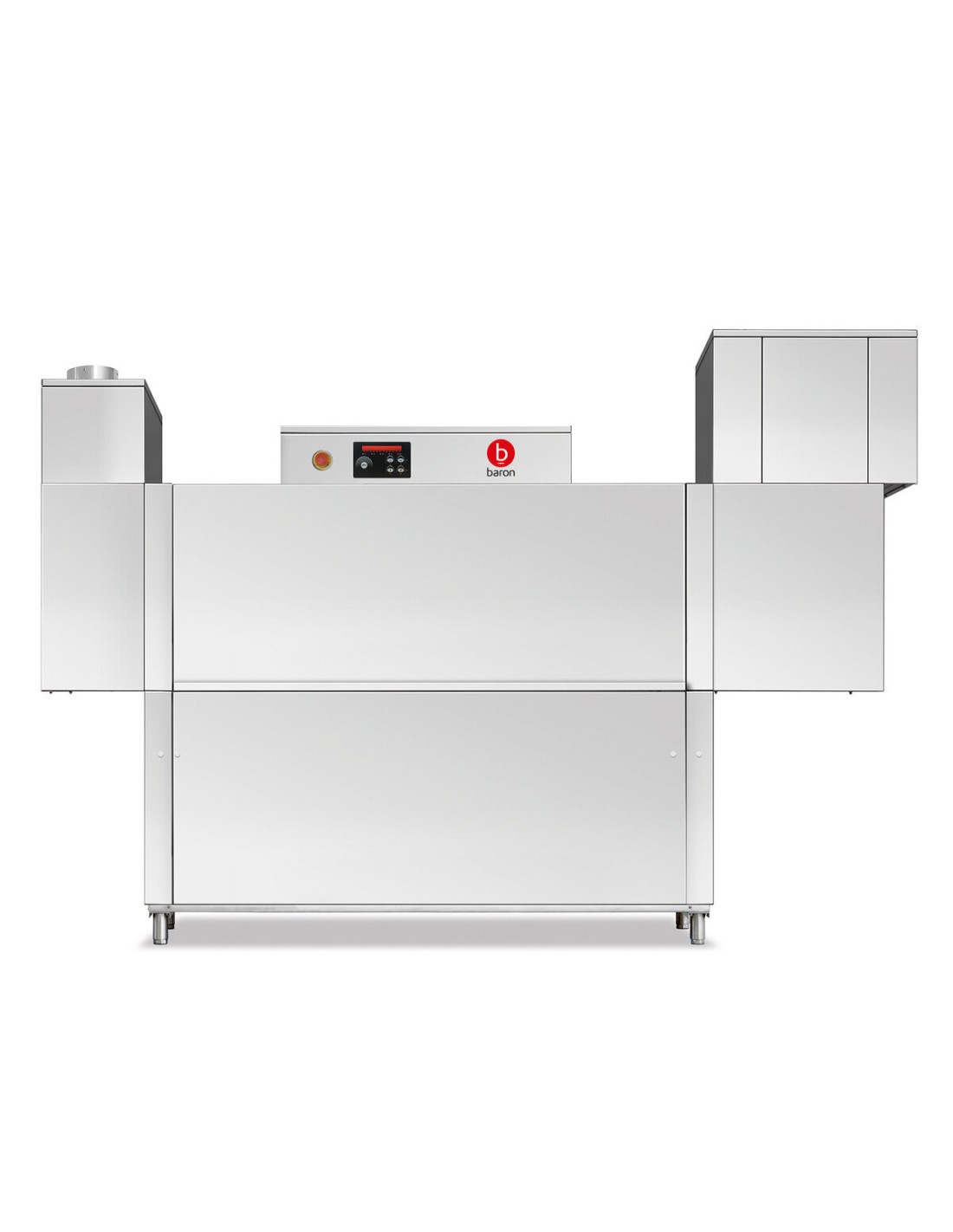

BASKET BASKET PLUS COMPACT - BBP144

Stainless steel tank protection filters, easily removed without disassembling the washing arms, to keep the wash water free of heavy dirt and food residues. Stainless steel washing and rinsing arms, Double side drive system with built-in clutch that prevents derailment.
Print
Home , WASHING , WASHING , BASKET PLUS COMPACT
SMALL DIMENSIONS GREAT PERFORMANCE The Compact series dishwashers are designed to meet the productivity requirements of small and medium-sized restaurants, combining small overall dimensions with high performance. Stainless steel tank protection filters, easily removed without disassembling the washing arms, to keep the wash water free of heavy dirt and food residues. Stainless steel washing and rinsing arms, Double side drive system with built-in clutch that prevents derailment.


Electronic membrane control. Front-mounted, easy-access electrical panel.

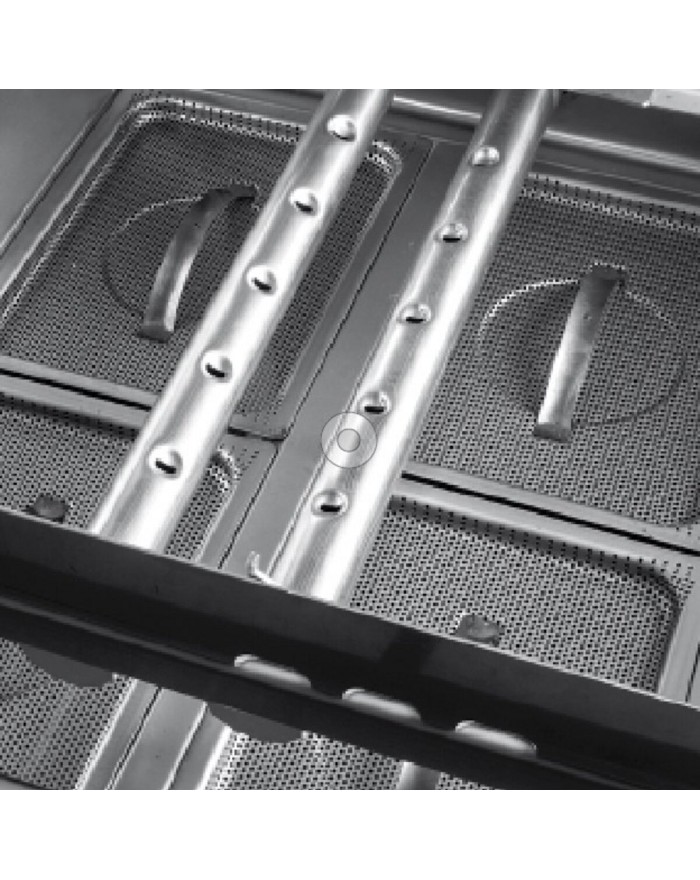

Stainless steel tank protection filters, easily removed without disassembling the wash arms, to keep the wash water free of heavy dirt and food residue

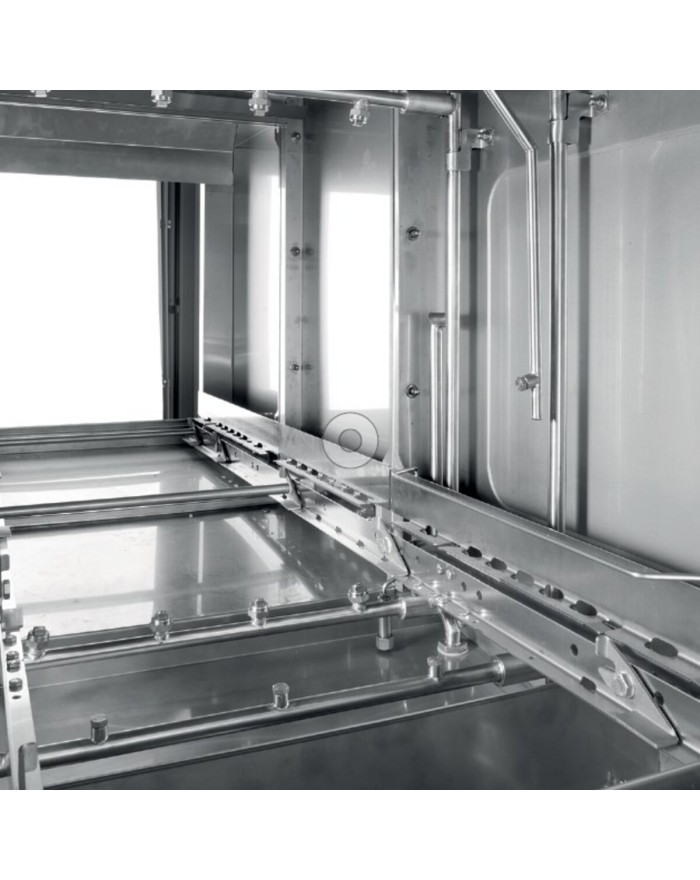

Double side drive system with built-in clutch that prevents derailment.

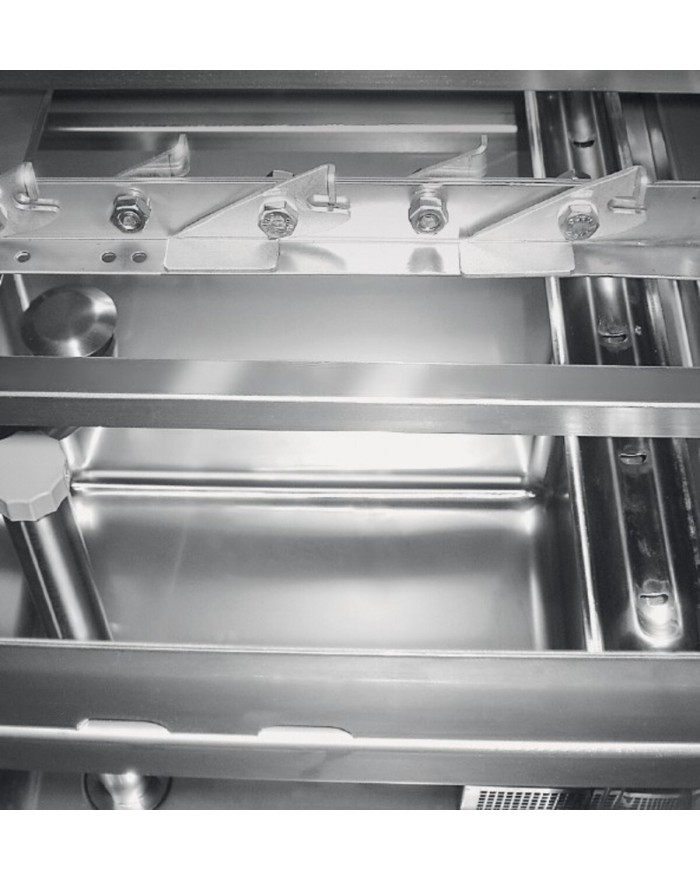

Stainless steel wash and rinse arms

BBP144
BND212069

Data sheet

Model
BBP144
Code
BND212069
Material type
ZCOM
Definition
BBP144 LAVAST. TRAINO EL. 100-150 C/H
Width
1880mm
Height
1565mm
Depth
715mm
Electrical power
29.58Kw
380-415V 3N
Gross volume
5009
Net weight
268Kg
Gross weight
308Kg
Company
0232
Packaging width
900
Packaging height
2100
Packaging length
2650
Basket dimensions
500x500 mm
Total absorption
30kW
Equipment dimensions
1880 x 715 x 1565/1900 H mm
