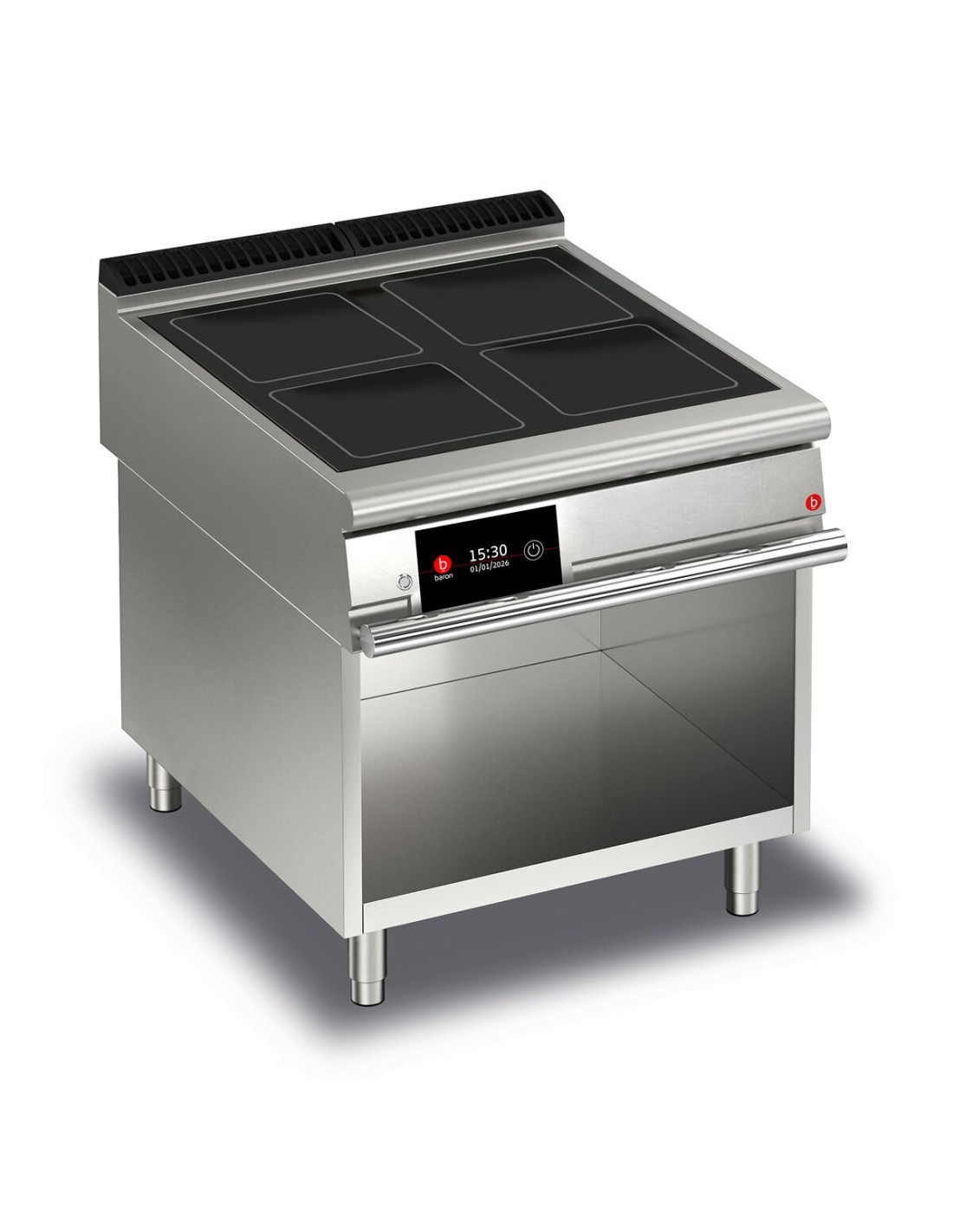

ELECTRIC COOKER 4 GLASS-CERAMIC ZONES ON OPEN COMPARTMENT
Data Sheet
DWG-3D
Pictures
Unbreakable watertight glass-ceramic top.
Cooking zones marked with 27x27 cm square silkscreen printing.
4 kw single zone power.
Temperature regulation from 70-450°c by thermostat.
Possibility of setting 2 timers to control cooking.
An acoustic signal alerts the operator at the end of the set time.
A temperature regulator sets the temperature and this permits to select two sizes of the heating zone according to the size of the pot bottom. Firing surface temperature 70° to 450° C Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.




Flat flush unbreakable glass for easy handling of pans. Temperature of the cooking surface from 70° to 450° C

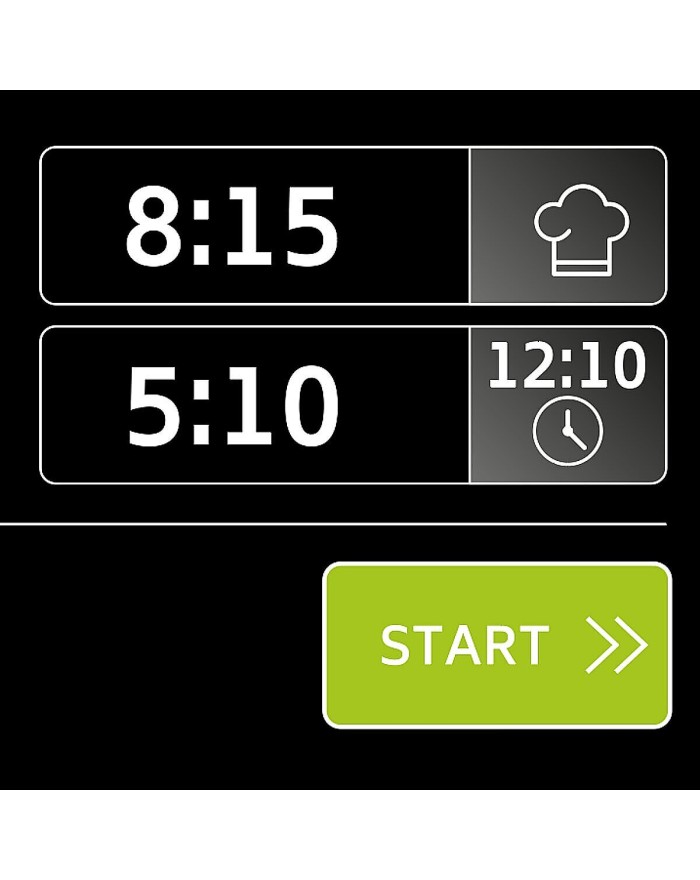

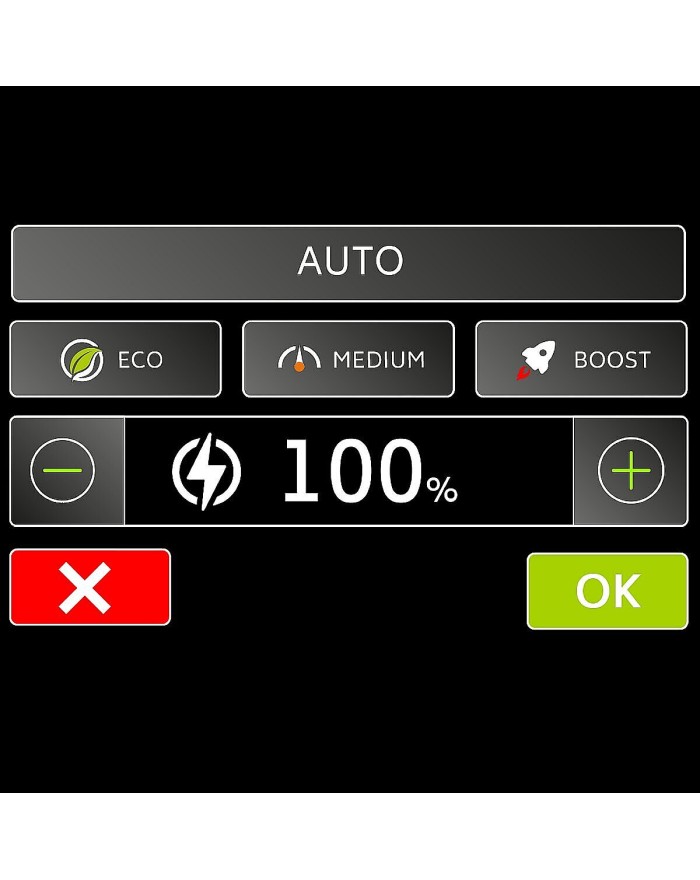

Power level control via touch screen and adjustment with ergonomic knob

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.
QS90PCV/VCE800
BN1015969 - Standard Standard
Data sheet
- Height
- 870mm
- Electrical power
- 16,000Kw
380-415V 3N - Volume
- 0.626m3
- Frequency
- 50-60 HzHz
- Gross volume
- 1010
- Net weight
- 127.8Kg
- IP grade
- IPX5
- Gross weight
- 143Kg
- N. Fires/Plates
- QUATTRO FUOCHI
- Production site
- BELLUNO
- Configurazione
- 4Z2727
- CE-certified
- -
- Production start year
- 2022
- Product type
- STANDARD
- Company
- 0232
- Model
- QS90PCV/VCE800
- Commercial Line
- QUEEN
- CODE
- BN1015969
- Packaging width
- 1020
- Commercial code
- QT90NPCV/VCE800-T4W
- Packaging height
- 1150
- Material type
- ZPF
- Width
- 800mm
- Definition
- QT90NPCV/VCE800-T4W VETROC. ELE.M80 A/G
- Packaging length
- 860
- Depth
- 900mm
- Alimentazione
- ELETTRICA
Specific References
- mpn
- QS90PCV/VCE800
