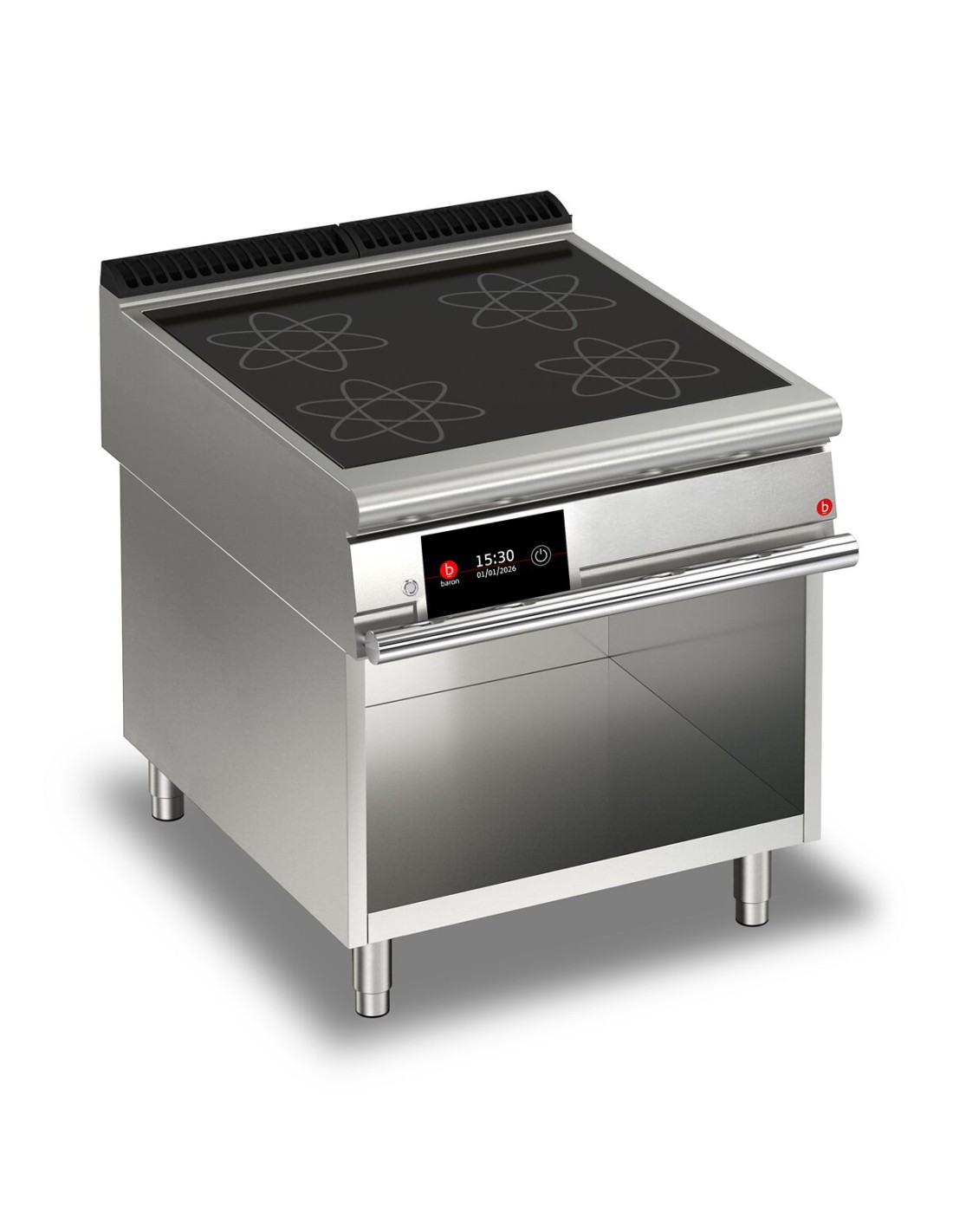

INDUCTION - 20kw - On cabinet
Data Sheet
DWG-3D
Pictures
Stainless steel outer shells and feet.
Height of the work surface adjustable from 840 to 900 mm.
Tops with a thickness of 2 mm.
Contoured dashboards with controls angled toward the operator.

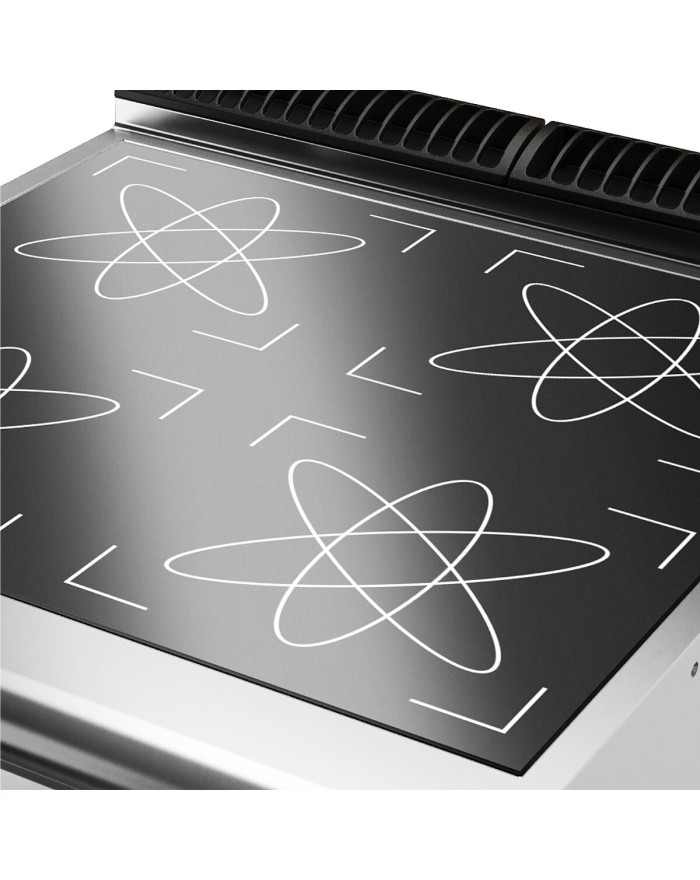

Unbreakable glass-ceramic top.
Each cooking zone is marked with a circular silkscreen printing.
Heating by means of an inductor equipped with a device that detects the presence of the cooking vessel on the cooking zone and automatically switches the heating on/off, and a device against overheating.
Power 5 kW cada zone.
Power adjustable to 12 levels Professional components tested to withstand intensive use over time Safety sensor to prevent overheating. Cooking zones with 5KW power Mechanically controlled induction ready for IOT connection to Cloud Serigraphs identifying cooking zones.






Ensures the correct positioning and suitability of the pot

Serigraphs identifying cooking zones.

Professional components tested to withstand intensive use over time

Power adjustable to 12 levels

Mechanically controlled induction ready for IOT connection to Cloud
QS90PCV/IND801
BN1358429 - Standard Standard
Data sheet
- Packaging length
- 850
- Definition
- QT90PCV/IND801-T4W INDUZ.ELETTRO.M80 A/G
- Alimentazione
- ELETTRICA
- Depth
- 900mm
- Electrical power
- 20,000Kw
380-415V 3 - Height
- 870mm
- Frequency
- 50/60 HzHz
- Volume
- 0.626m3
- Gross volume
- 1010
- IP grade
- IPX4
- Net weight
- 86Kg
- Configurazione
- IZ4
- Gross weight
- 96.8Kg
- RATED CURRENT
- 30,40(A)
- Certified model
- QT90PCV/IND801-T4W
- CE-certified
- -
- Production start year
- 2022
- Product type
- STANDARD
- Company
- 0232
- Model
- QS90PCV/IND801
- Commercial Line
- QUEEN
- CODE
- BN1358429
- Packaging width
- 1020
- Commercial code
- QT90PCV/IND801-T4W
- Packaging height
- 1170
- Material type
- ZPF
- Width
- 800mm
Specific References
- mpn
- QS90PCV/IND801
