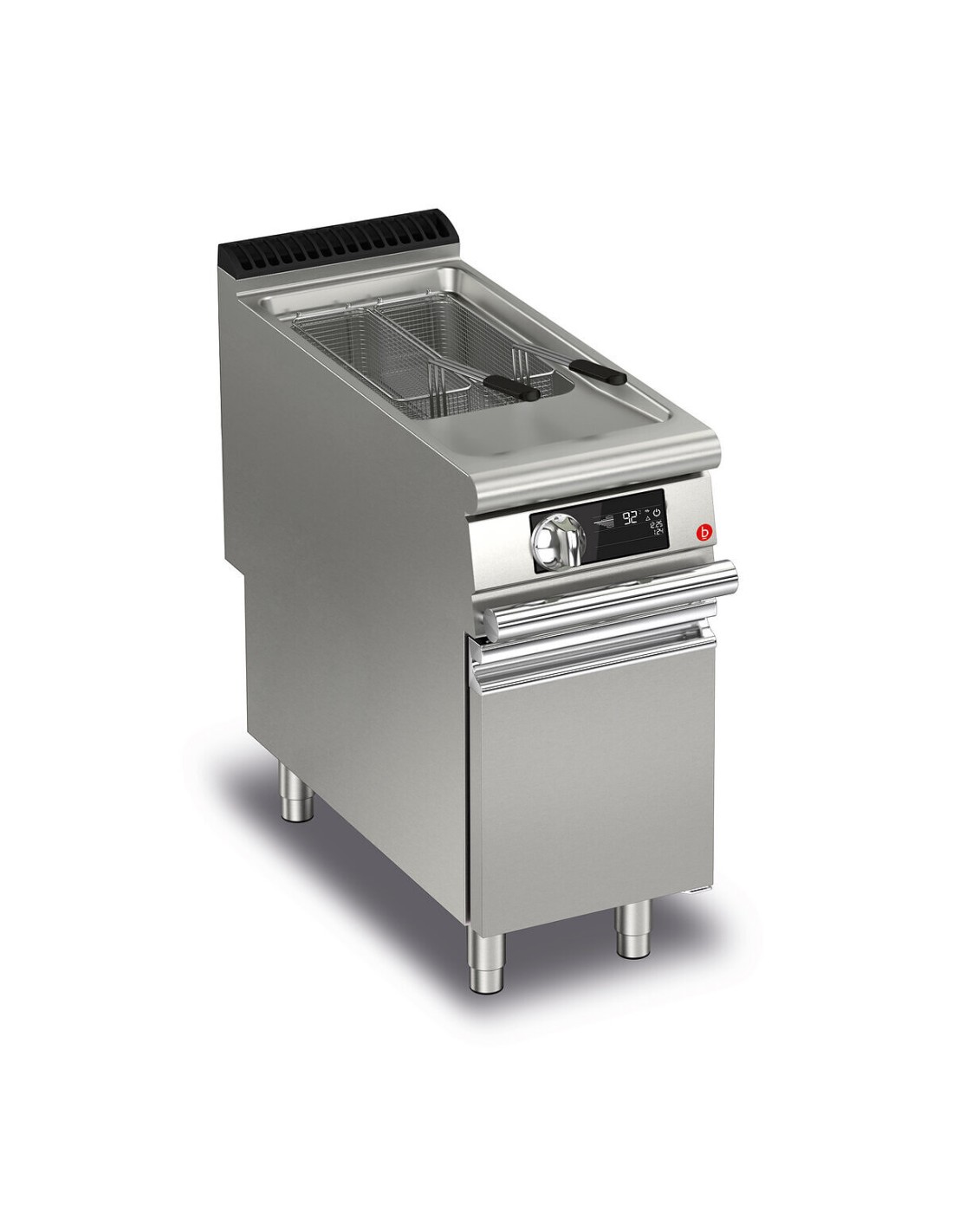

ELECTRIC FRYER 1 BASIN 22 L - WITH 2 BASKET KIT

Stainless steel outer coatings and feet. Height of the work surface adjustable from 840 to 900mm. Tops with a thickness of 2 mm. AISI 18/10 stainless steel tanks with cold zone and foam expansion zone. Oil drain taps. Oil drip pans on request. Safety thermostat (230°C) against excessive oil overtemperatures. Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version. Fully removable heating element in das 10 and 15-liter tank version. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal.

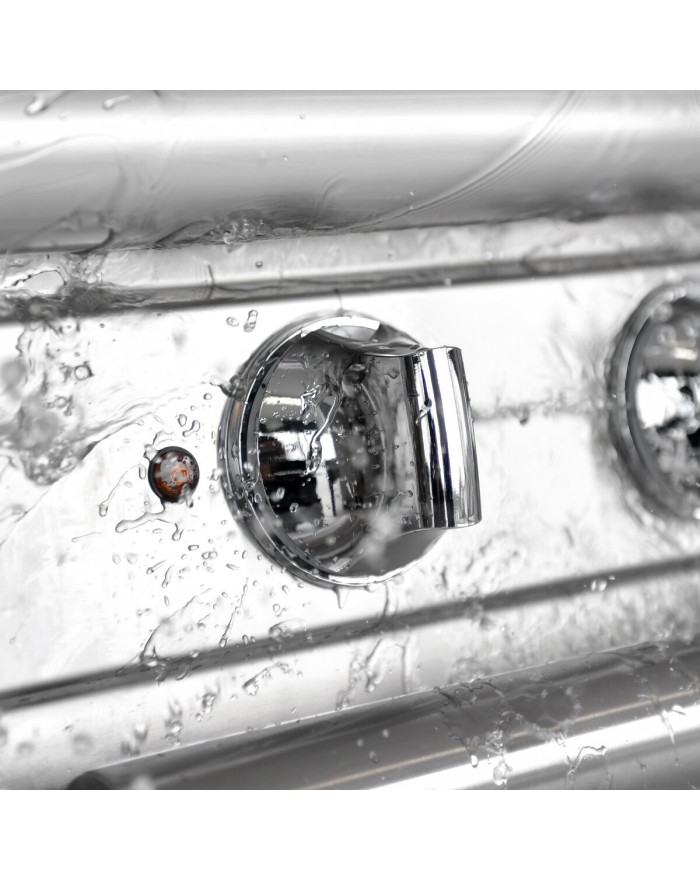

Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety.

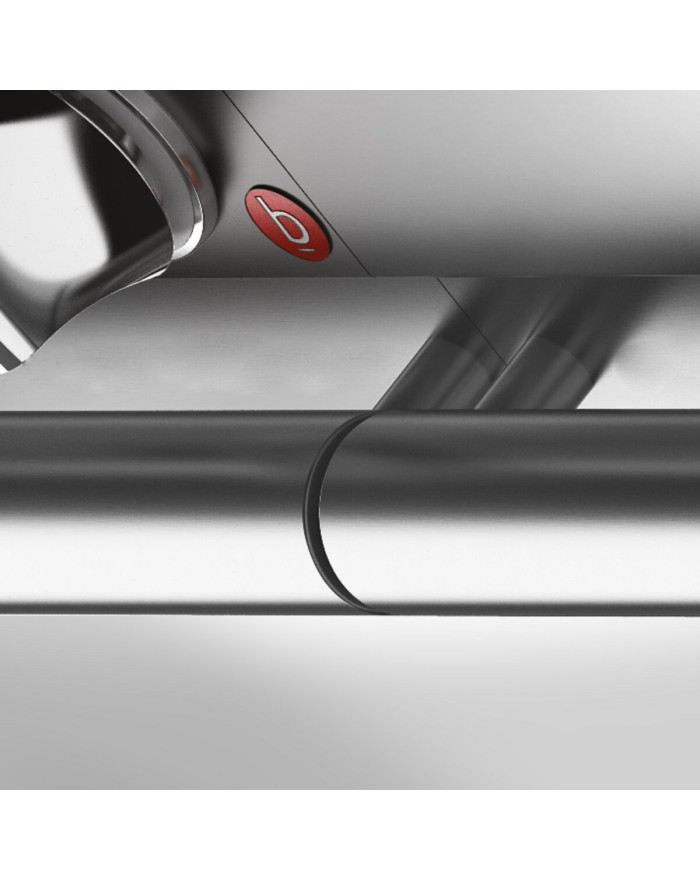

The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

QT90FRI/E422-T4W
CR1353799T4W - Standard Standard

Data sheet

Packaging width
980
CODE
CR1353799T4W
Packaging height
500
Commercial code
QT90FRI/E422-T4W
Width
400mm
Material type
ZPF
Packaging length
440
Definition
QT90FRI/E422-T4W FRIG.EL.1V 22LT IOT M40
Alimentazione
ELETTRICA
Depth
900mm
Electrical power
18,000Kw
380-415V 3N
Height
850mm
Frequency
50/60 HzHz
Volume
0.306m3
Capacity
22 litri
Gross volume
0216
Net weight
57Kg
IP grade
IPX4
Gross weight
67Kg
Cestelli
2 x QCF22/23P + Bottom Grid
Production site
BELLUNO
CE-certified
-
Production start year
2022
Product type
STANDARD
Company
0232
Commercial Line
QUEEN
Model
QT90FRI/E422-T4W

Specific References

mpn
QT90FRI/E422-T4W
