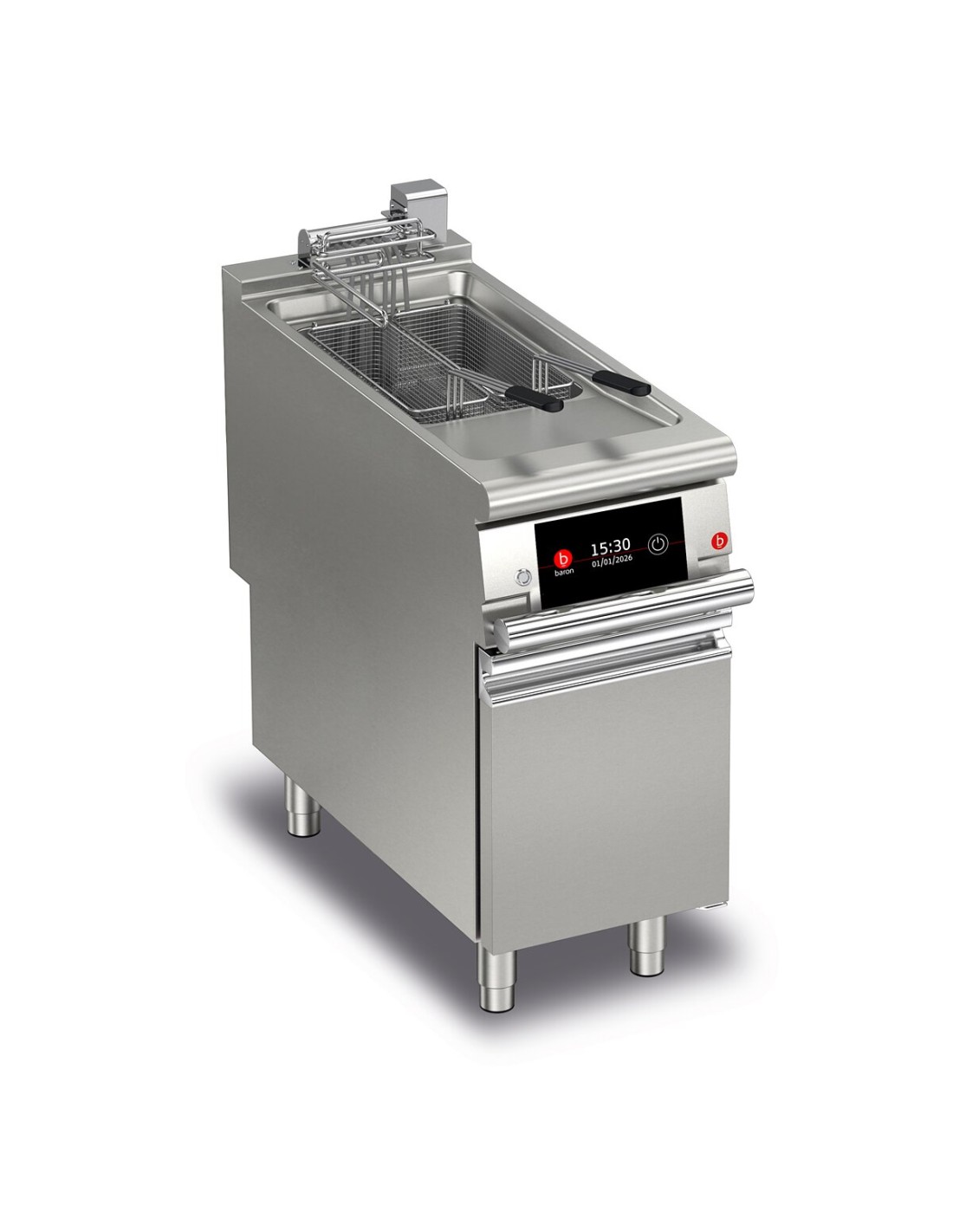

ELECTRIC FRYER 1 BOWL 15 L - WITH 2 BASKET KIT
Data Sheet
DWG-3D
Pictures
Stainless steel outer coatings and feet.
Height of the work surface adjustable from 840 to 900mm.
Tops with a thickness of 2 mm.
AISI 18/10 stainless steel tanks with cold zone and foam expansion zone.
Oil drain taps.
Oil drip pans on request.
Safety thermostat (230°C) against
excessive oil overtemperatures.
Heating by means of an AISI 304 stainless steel armoured heating element inside the tank and rotatable by more than 90° in the 22lt tank version.
Fully removable heating element in das 10 and 15-liter tank version.
The tanks have a large pouring area and a cold zone at the bottom to collect food particles and prolong the life of the oil. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.

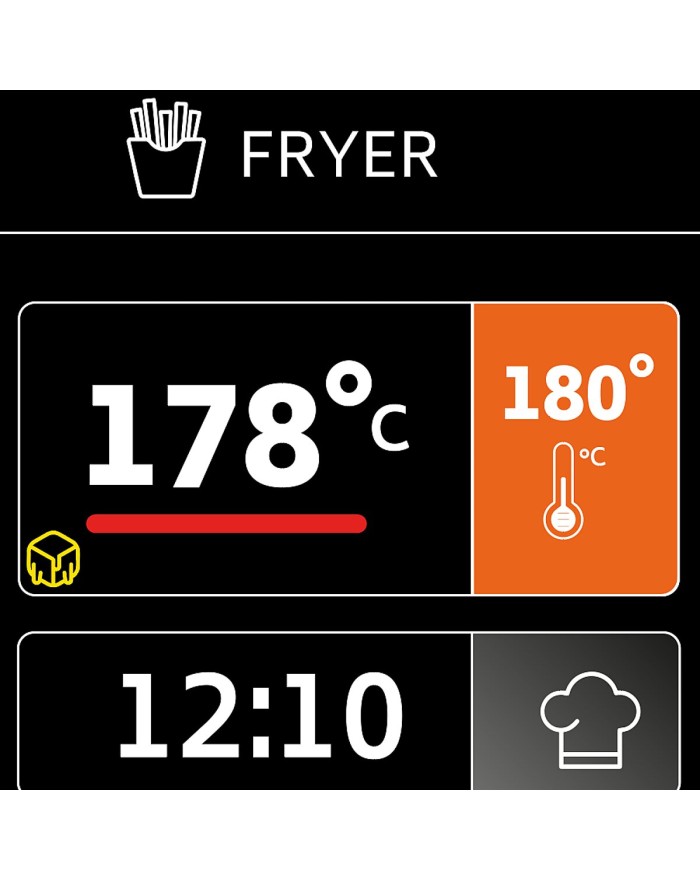

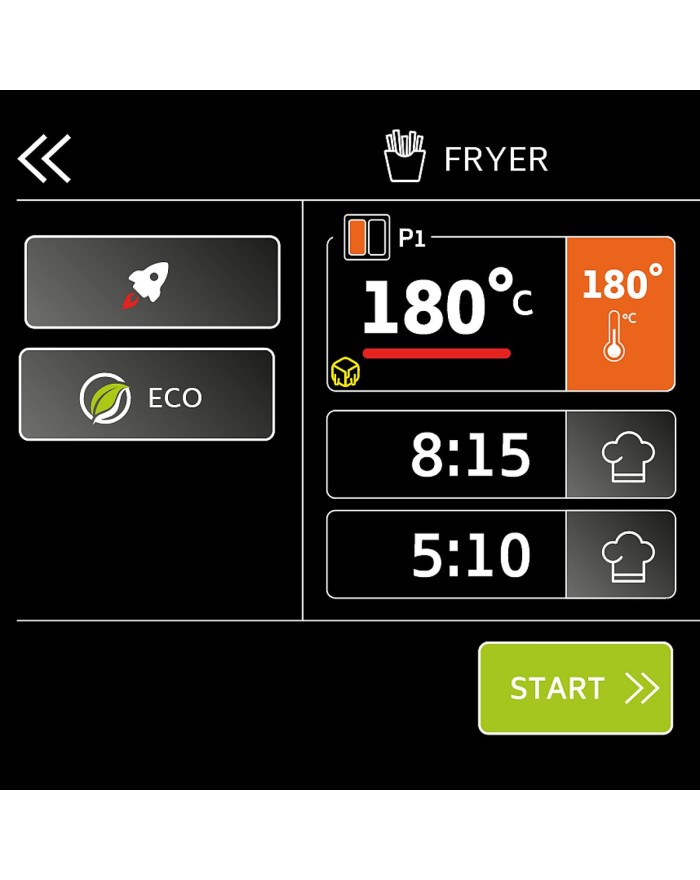

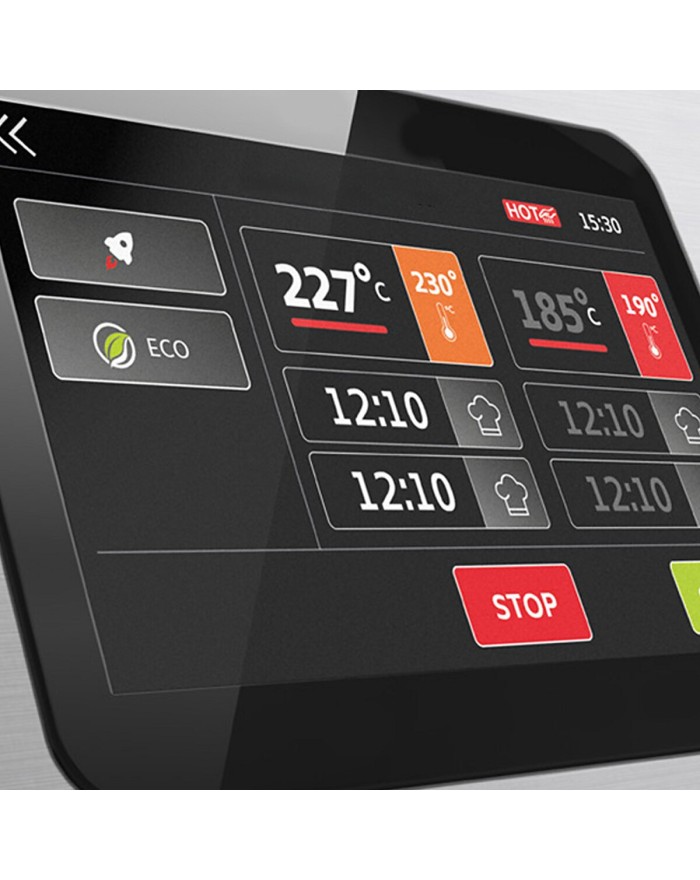

Temperature control via touch screen and adjustment with ergonomic knob

Everything is under control, perfect results every time. Thanks to the practical display, parameter selection is quick and precise. Easy and clear temperature management, and special functions are always visible and accessible from the display.

MELTING function for using solid or semi-solid grease integrated in the touch control.
QS90FRI/E415
BN1018409 - Standard Standard
Data sheet
- IP grade
- IPX5
- Net weight
- 50.4Kg
- Cestelli
- 2 x CF15P
- Gross weight
- 61Kg
- Production site
- BELLUNO
- Production start year
- 2022
- Product type
- STANDARD
- Company
- 0232
- Commercial Line
- QUEEN
- Packaging width
- 1020
- Model
- QS90FRI/E415
- Packaging height
- 1150
- CODE
- BN1018409
- Width
- 400mm
- Commercial code
- Q90FRI/E415
- Packaging length
- 460
- Material type
- ZPF
- Alimentazione
- ELETTRICA
- Definition
- QT90FRI/E415-T4W FRIGG. EL.1V 15LT M40
- Electrical power
- 13,000Kw
380-415V 3N - Depth
- 900mm
- Frequency
- 50-60 HzHz
- Height
- 870mm
- Capacity
- 15 litri
- Volume
- 0.313m3
- Gross volume
- 0540
Specific References
- mpn
- QS90FRI/E415
