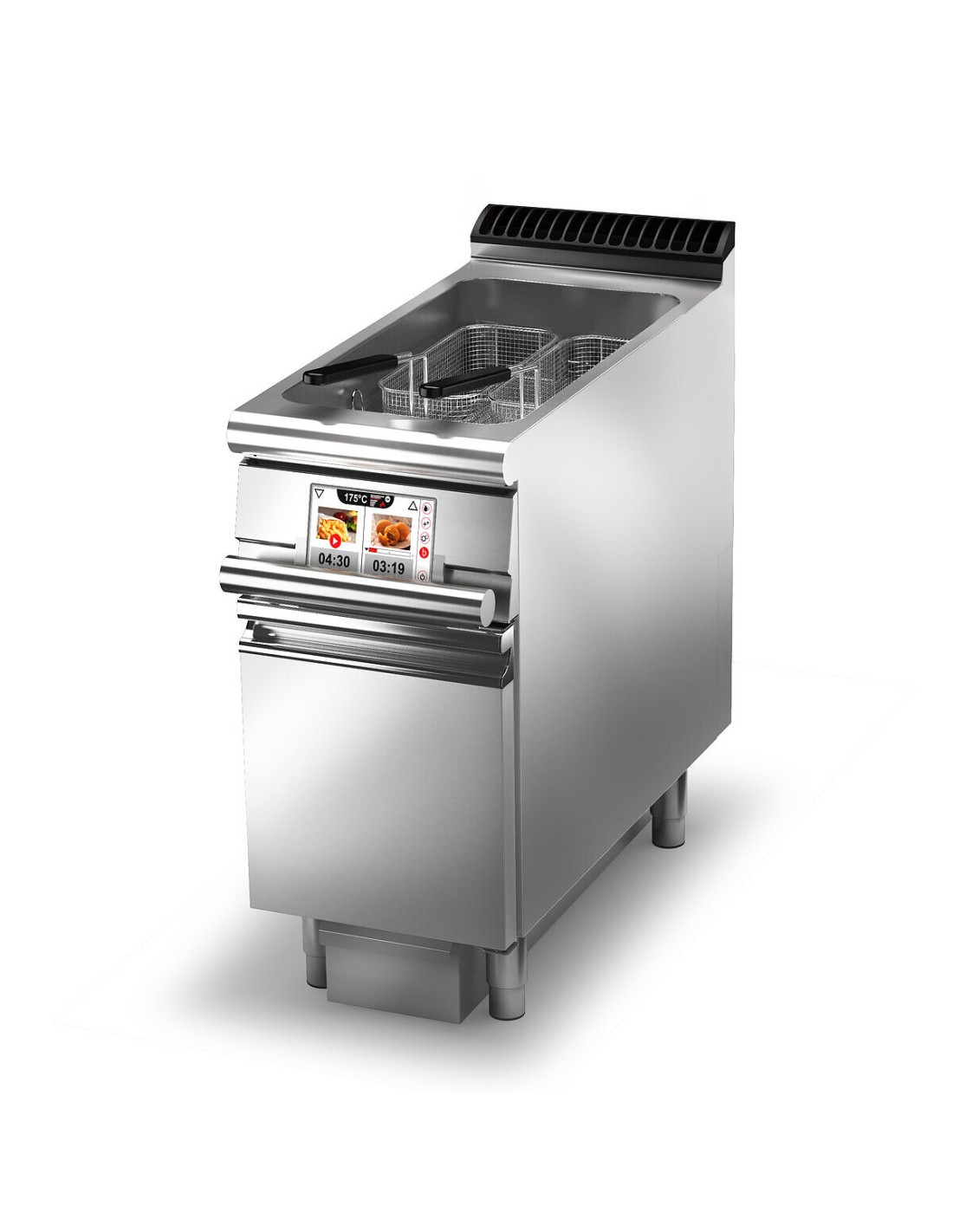

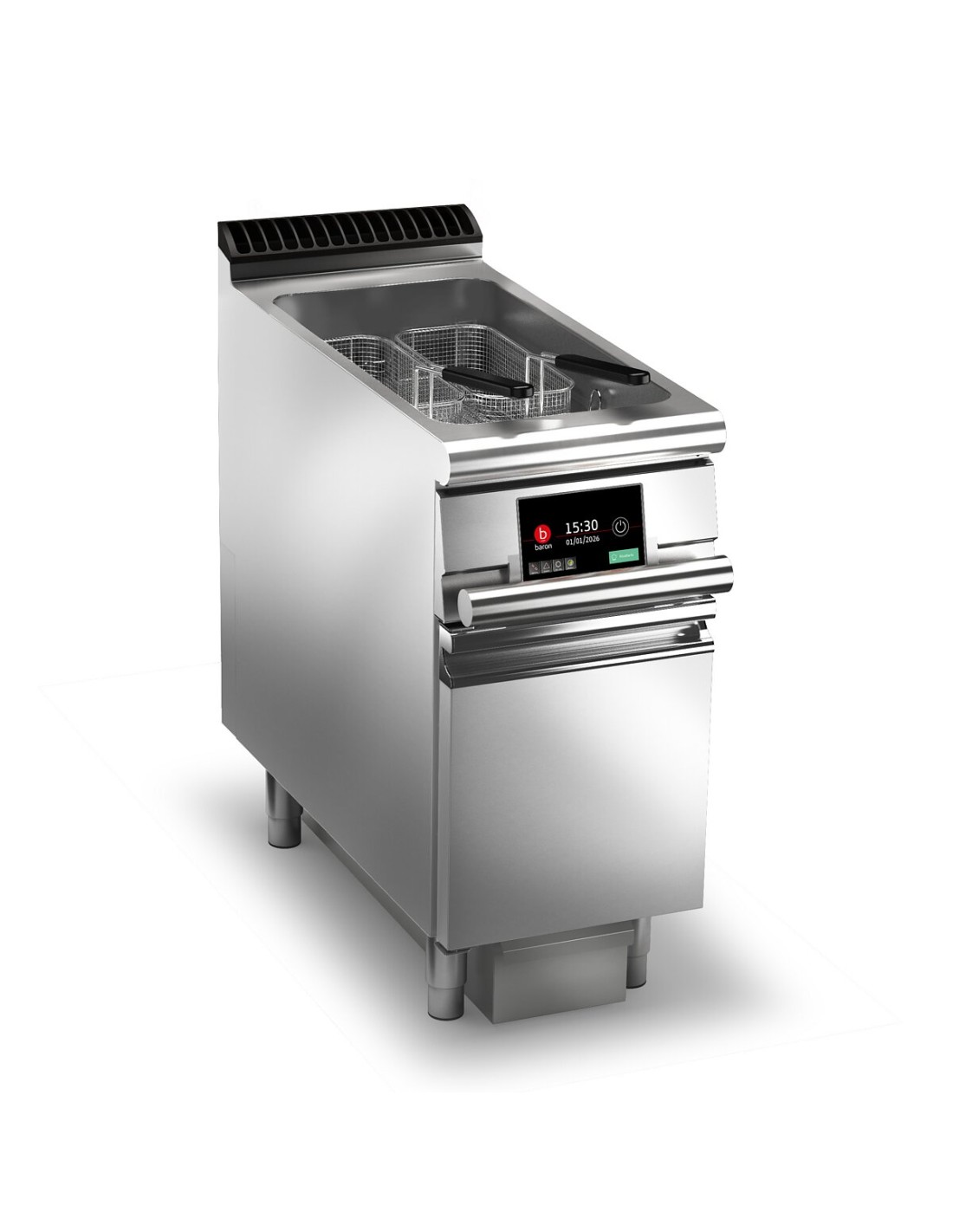

EVO ELECTRIC 1-BASKET FRYER WITH ELECTRONIC CONTROL 22 LT - With basket lifter
Data Sheet
DWG-3D
Pictures
Worktop, cooking tank and dashboard
made of AISI 304 stainless steel.
Molded firing pan with radiused inner profile.
Equipped with a large front reservoir for oil and foam expansion.
Large cold zone at the bottom ensures longer integrity of the oil used.
Manual reset safety thermostat.

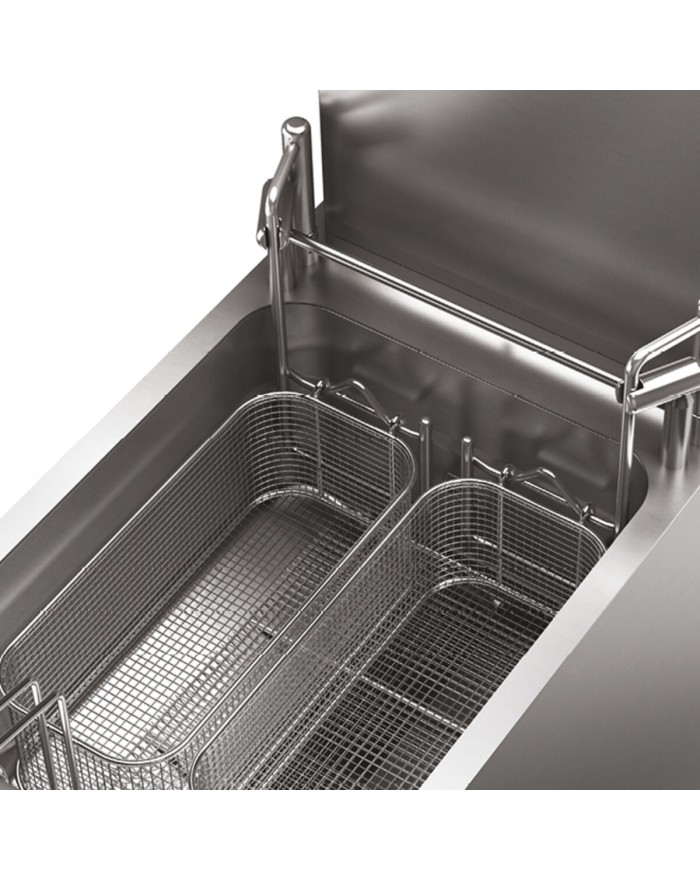

Removable filter, baskets, lid and manifold for drain tap included.
Height-adjustable stainless steel feet.
IPX5 degree of protection.
Gas version
Stainless steel burner outside the tank.
Oil temperature is regulated by
thermostat.
Electric version

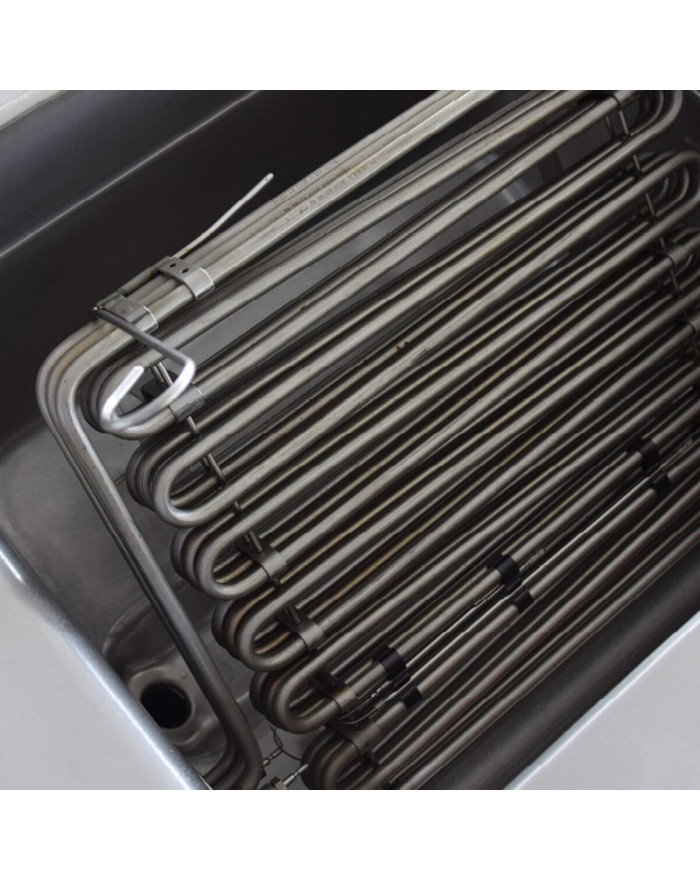

Armored heating element made of AISI 304 stainless steel, inside the pots rotatable by more than 90°.
Oil circulation and filtration Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time. Automatic choice from a selection of pre-set and tested recipes that can be stored by the user. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.
Industry 4.0 connectivity-ready version. Model T4w

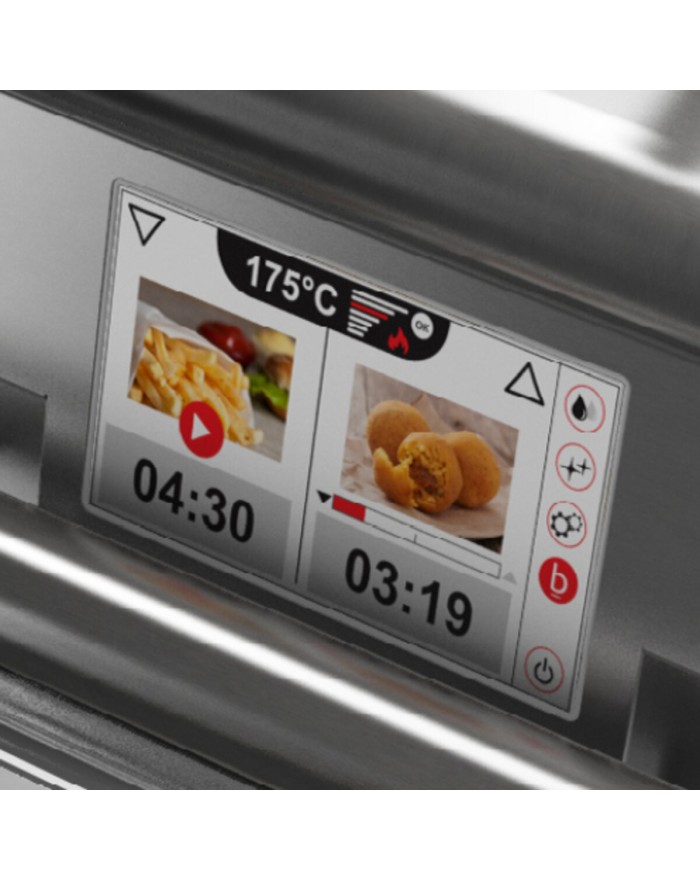

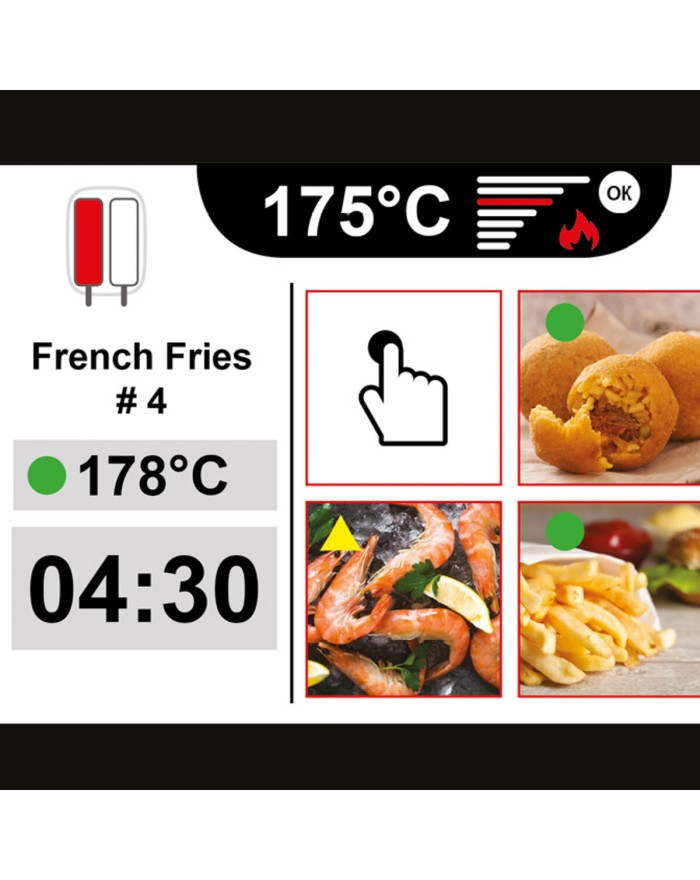

Control panel with 7-inch high-resolution touchì screen display, simple and intuitive.
Oil circulation and filtration
Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time.
Automatic choice from a selection of pre-set and tested recipes that can be stored by the user.
In the electric version with a22-liter tank, the heating element can be rotated more than 90°.
QT90FREV/E422A-T4W
CR1209929T4W
Data sheet
- Model
- QT90FREV/E422A-T4W
- Code
- CR1209929T4W
- Width
- 400mm
- Height
- 870mm
- Depth
- 900mm
- Electrical power
- 22Kw
- Company
- 0232
- Alimentazione
- ELETTRICA
- Capacità litri
- 22L
