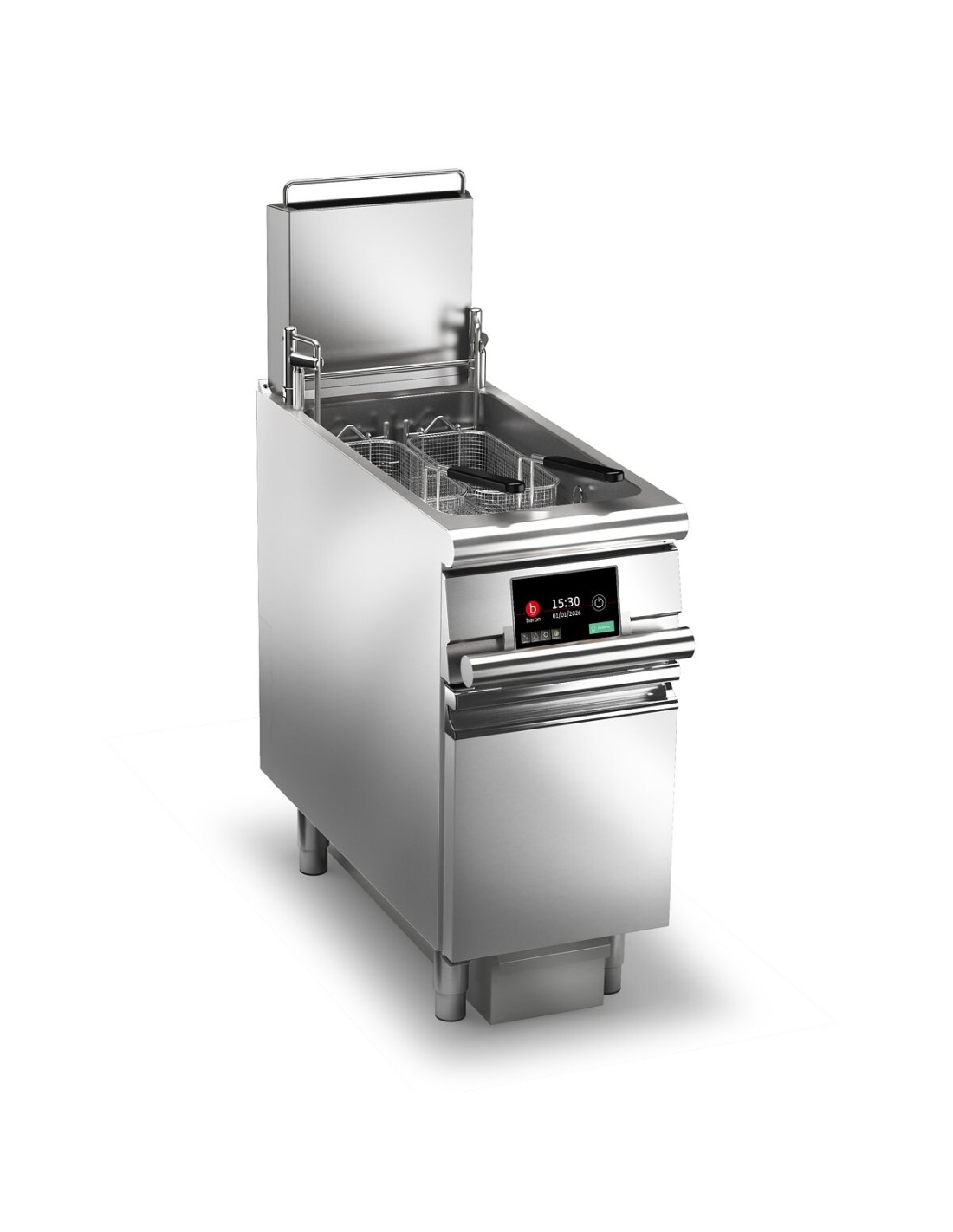

EVO GAS FRYER 1 TANK ELECTRONIC CONTROL 23 LT - With oil filtering
Data Sheet
DWG-3D
Pictures
Worktop, cooking tank and dashboard
made of AISI 304 stainless steel.
Molded firing pan with radiused inner profile.
Equipped with a large front reservoir for oil and foam expansion.
Large cold zone at the bottom ensures longer integrity of the oil used.
Manual reset safety thermostat.

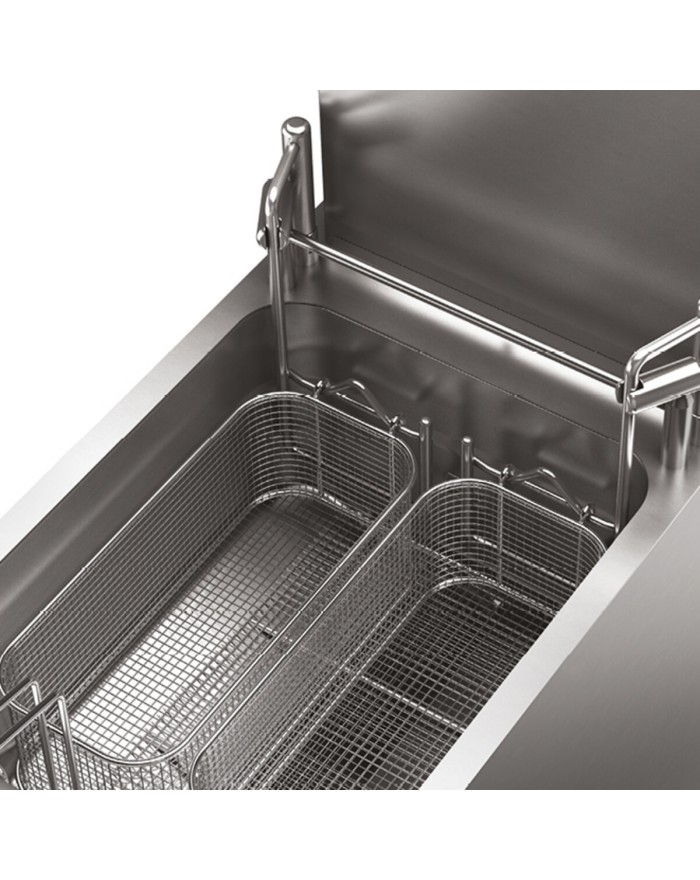

Removable filter, baskets, lid and manifold for drain tap included.
Height-adjustable stainless steel feet.
IPX5 degree of protection.
Gas version
Stainless steel burner outside the tank.
Oil temperature is regulated by
thermostat.
Electric version
Armored heating element made of AISI 304 stainless steel, inside the pots rotatable by more than 90°.

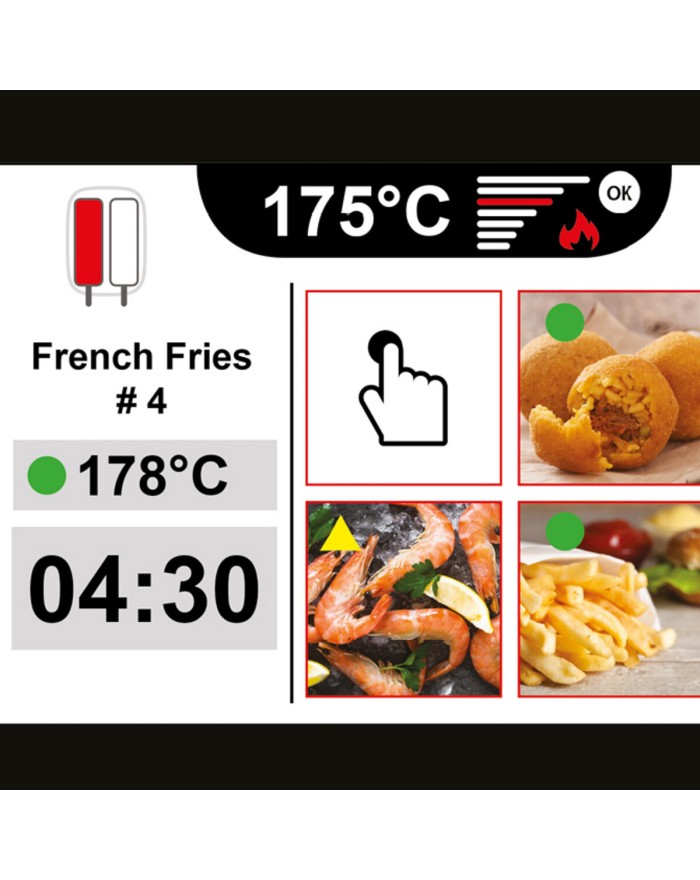

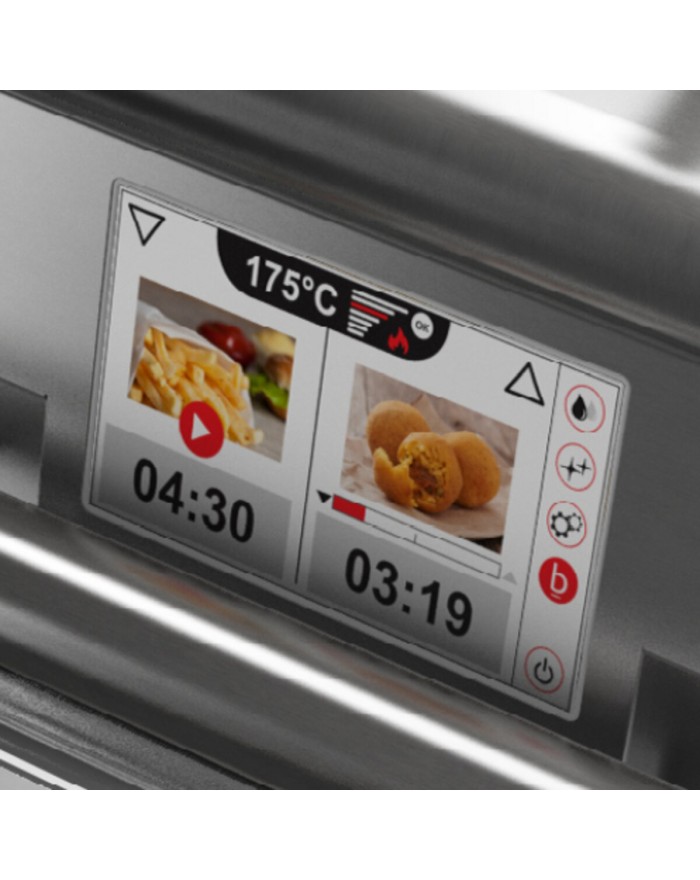

Control panel with high-resolution 7" touch screen display, simple and intuitive. Oil circulation and filtration Automatic choice from a selection of pre-set and tested recipes that can be stored by the user. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.






Industry 4.0 connectivity-ready version. Model T4w

Control panel with 7-inch high-resolution touchì screen display, simple and intuitive.

Oil circulation and filtration

Automated basket lift. By programming recipes from the touch screen panel, the basket lifts automatically at the end of the set time.

Automatic choice from a selection of pre-set and tested recipes that can be stored by the user.
QS90FREV/G423F
BN1209959 - Standard Standard
Data sheet
- Frequency
- 50 HzHz
- Gas power Kw
- 25,00Kw
- Electrical power
- 0,100Kw
220-240V 1N - Gas power (G25.3/25 mbar)
- 25,00Kw
- IP grade
- IPX5
- Gas power Kcal
- 21500Kcal
- Capacità litri
- 23L
- Gross volume
- 0633
- Chimney type
- A1-B21
- Certified model
- Q90FREV/G423F
- CE-certified
- CE-0051DM5041/M1
- Product type
- STANDARD
- II2H3+
- ES/GB/GR/IE/IT/PT/SK
- Company
- 0232
- Model
- QS90FREV/G423F
- Commercial Line
- QUEEN
- CODE
- BN1209959
- Packaging width
- 440
- Commercial code
- Q90FREV/G423F-74W
- Packaging height
- 1410
- Material type
- ZPF
- Width
- 400mm
- Definition
- Q90FREV/G423F-T4W FRIGG. GAS IOT 900 M40
- Packaging length
- 1020
- Depth
- 900mm
- Alimentazione
- MISTA
- Height
- 870mm
- Volume
- 0.313m3
Specific References
- mpn
- QS90FREV/G423F
