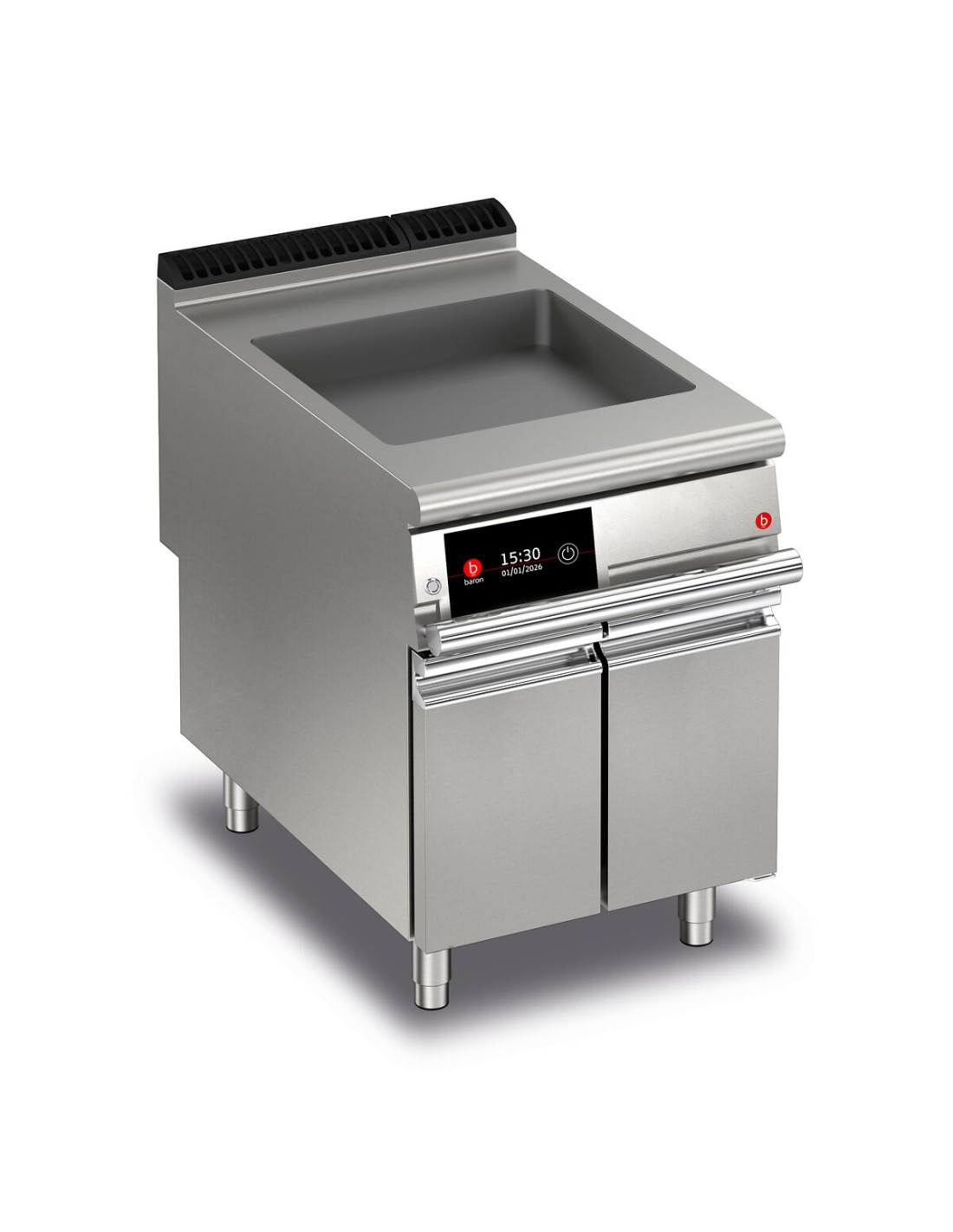

ELECTRIC MULTIFUNCTION BRATT PAN
Data Sheet
DWG-3D
Pictures
Stainless steel outer shells and feet.
Height from worktop adjustable from 840 to 900 mm
Tops with 2 mm thickness
Tank made entirely of AISI 304 steel.
Heating is achieved by means of armoured heating elements placed under the bottom of the tank.
The temperature, thermostatically controlled, is adjustable from 50 to 300°C.
Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.





Tank with armored heating elements placed under the bottom to cook with temperature uniformity.

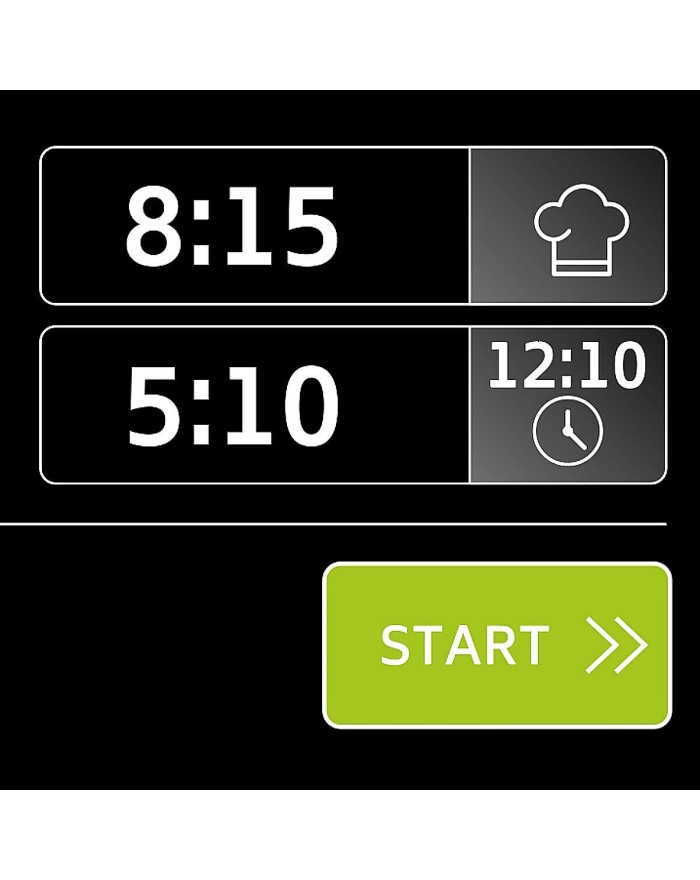

Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

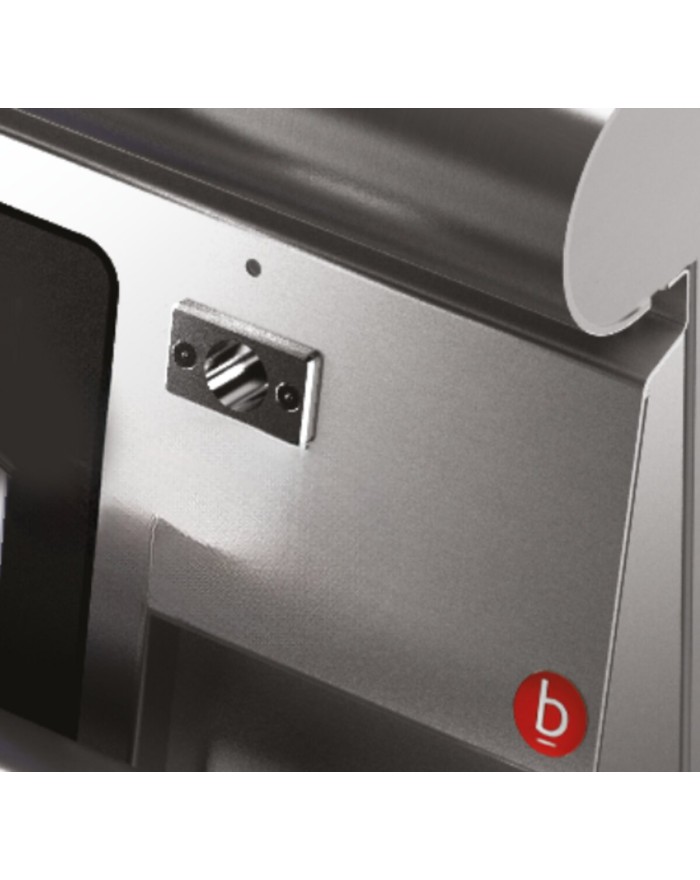

Predisposition for core probe, for even greater cooking control. Reaching the set core temperature is signalled by an acoustic signal.

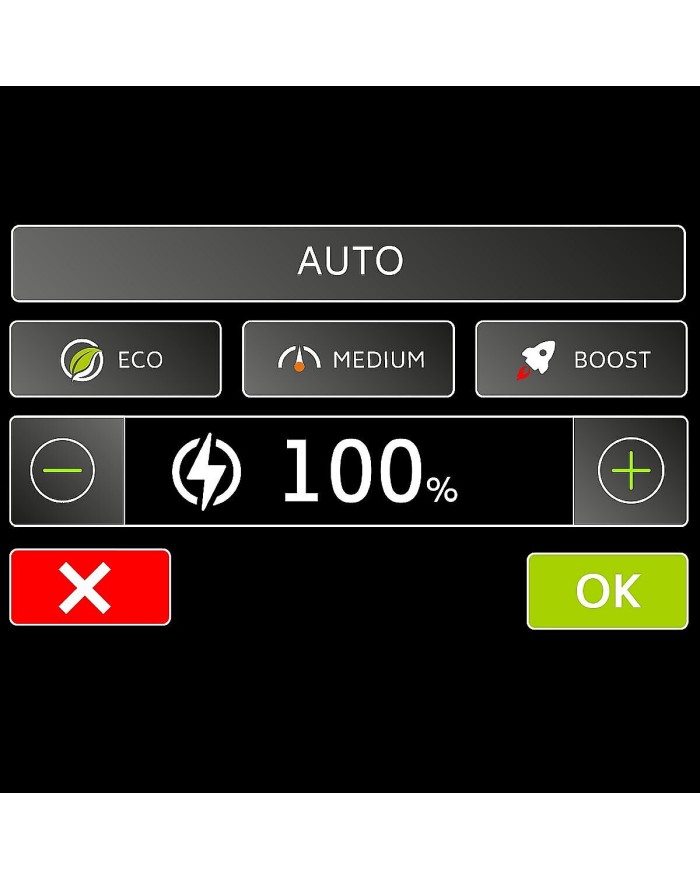

Power level control via touch screen and adjustment with ergonomic knob
QS90BRF/E605
BN1018129 - Standard Standard
Data sheet
- Commercial Line
- QUEEN
- Width
- 600mm
- Alimentazione
- ELETTRICA
- Electrical power
- 8.1Kw
380-415V 3N - Model
- QS90BRF/E605
- Frequency
- 50-60 HzHz
- CODE
- BN1018129
- Capacity
- 21
- Material type
- ZPF
- Definition
- QT90BRF/E605-T4W MULTIPLA EL.M60
- IP grade
- IPX5
- Depth
- 900mm
- Capacità litri
- 21L
- Height
- 870mm
- Volume
- 0.47m3
- Gross volume
- 0000
- Net weight
- 60Kg
- Gross weight
- 82Kg
- Certified model
- Q90BRF/E605
- CE-certified
- -
- Company
- 0232
Specific References
- mpn
- QS90BRF/E605
