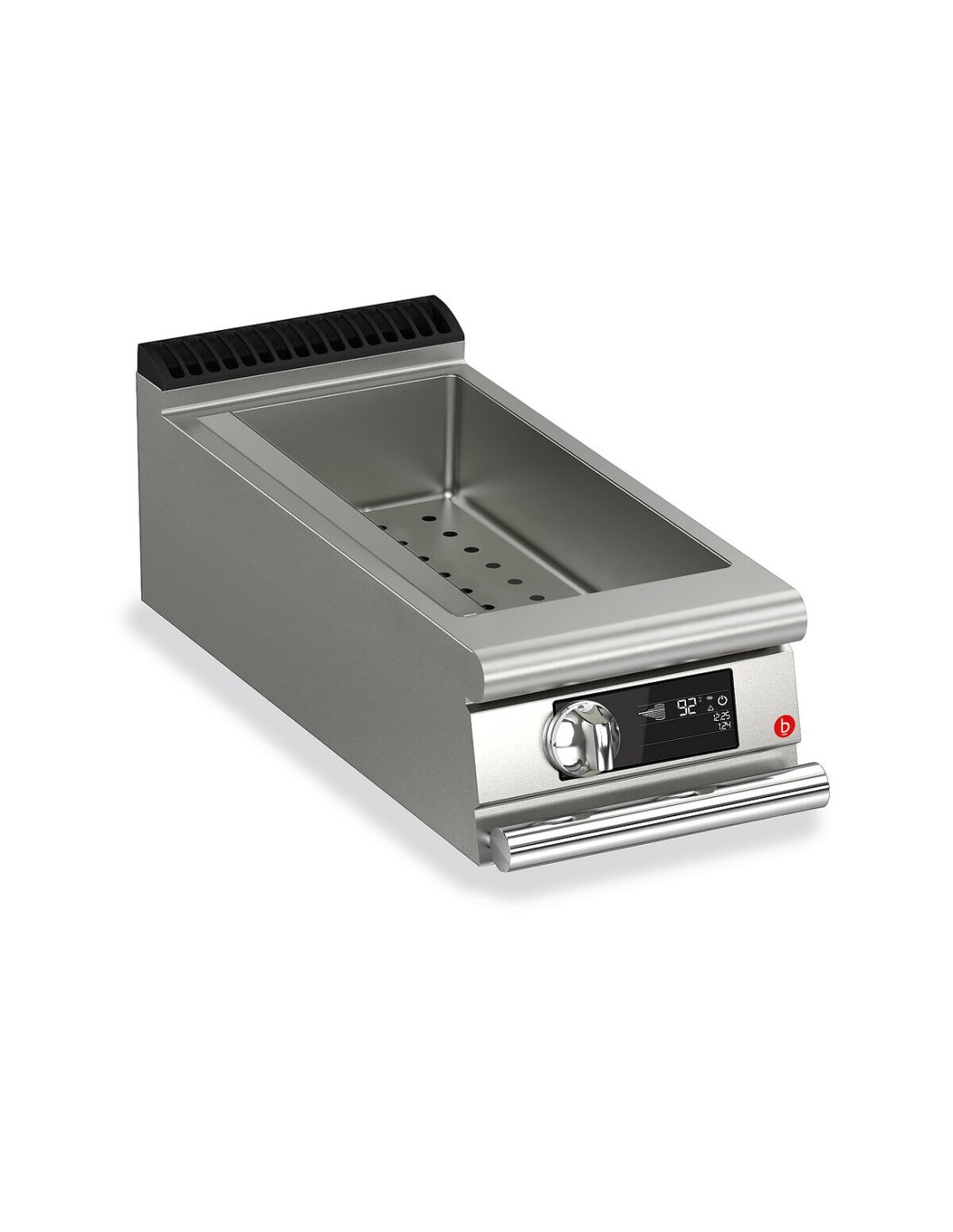

ELECTRIC BAIN-MARIE - TOP VERSION

Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TRAY Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank. Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is restin
Print
Stainless steel outer shells and feet. Height of the work surface adjustable from 840 to 900 mm. Tops with a thickness of 2 mm. Tank dimensions Gastro Norm. Perforated false bottom for supporting containers. Adjustable temperatures from 30° to 90°C. Tub equipped with an overflow level. Armored heating elements placed outside the tank, water loading by solenoid valve. Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TRAY Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank. Data collection, operation monitoring, remote control are just some of the possibilities that connectivity puts at your disposal. Equipment certified for low voltage directive 2014/35/EU according to the international CB scheme. Thanks to the jet-proofing certification (IPX5) obtained through specific tests, knobs and under-knobs can be washed at the end of the working day without compromising functionality and safety. The front bar is a comfortable foothold for the cook; it keeps a safe distance from the worktop and thus protects against accidental collisions with what is resting on the worktops and at the same time the handles.


Industry 4.0 ready version.

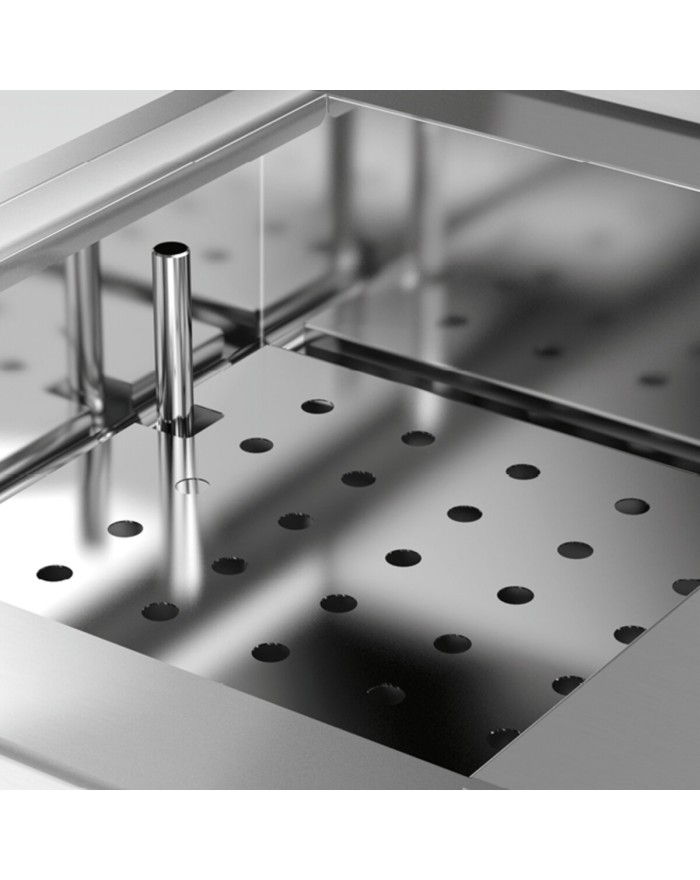

Adjustable temperature in tank with overflow and perforated false bottom for supporting containers. GN-sized tank.



Possibility of setting 2 timers to control cooking. An acoustic signal warns the operator at the end of the set time.

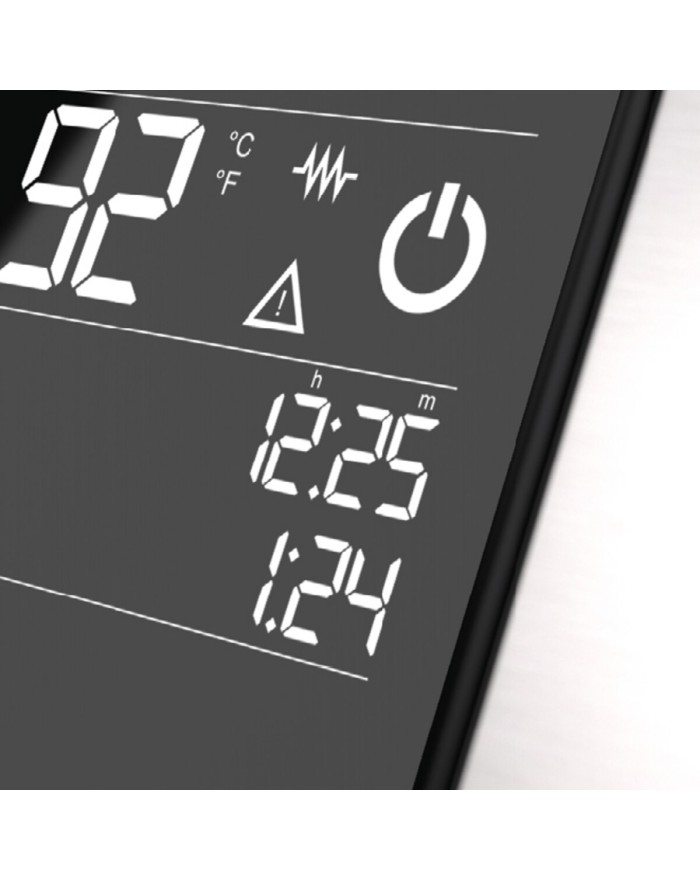

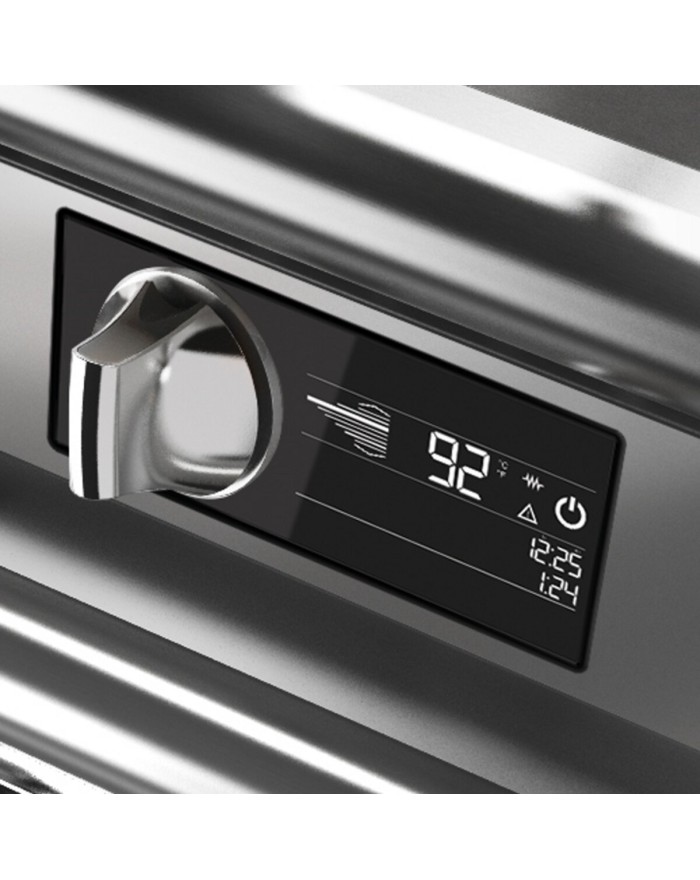

Power level control via touch screen and adjustment with ergonomic knob

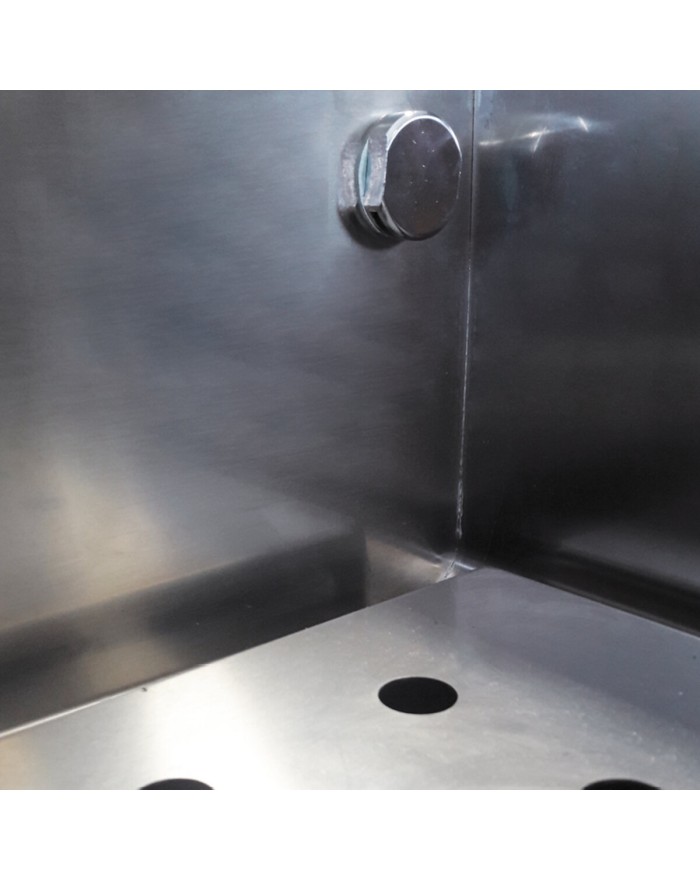

Integrated water dispenser in tank

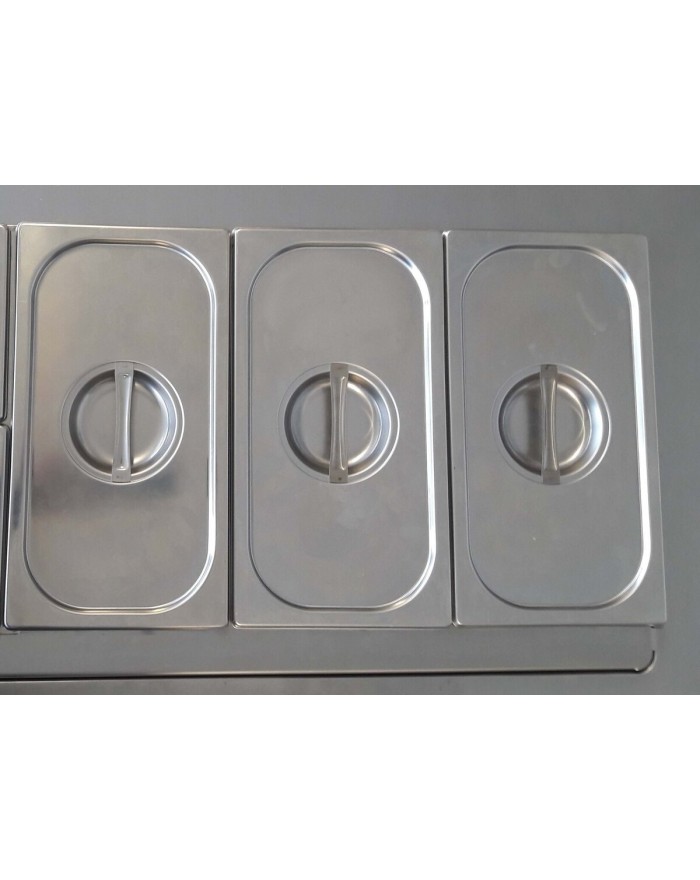

Different GN tray combinations Examples: M40: 1xGN1/3 + 1xGN 1/1 TANK M80: 2xGN1/3 + 2xGN 1/1 TRAY

QT90BM/E410-T4W
CR1017909T4W

Data sheet

Model
QT90BM/E410-T4W
Code
CR1017909T4W
Width
400mm
Height
250mm
Depth
900mm
Electrical power
1.8Kw
220-240V 1N
Company
0232
Alimentazione
ELETTRICA

Download

CR1017909T4W_it.pdf

Download (1.03MB)

CR1017909T4W_de.pdf

Download (1.03MB)

CR1017909T4W_en.pdf

Download (1.03MB)

CR1017909T4W_es.pdf

Download (1.03MB)

CR1017909T4W_fr.pdf

Download (1.03MB)
